Western Avenue Traffic Bridge over the Cal Sag Canal

DSC_2582

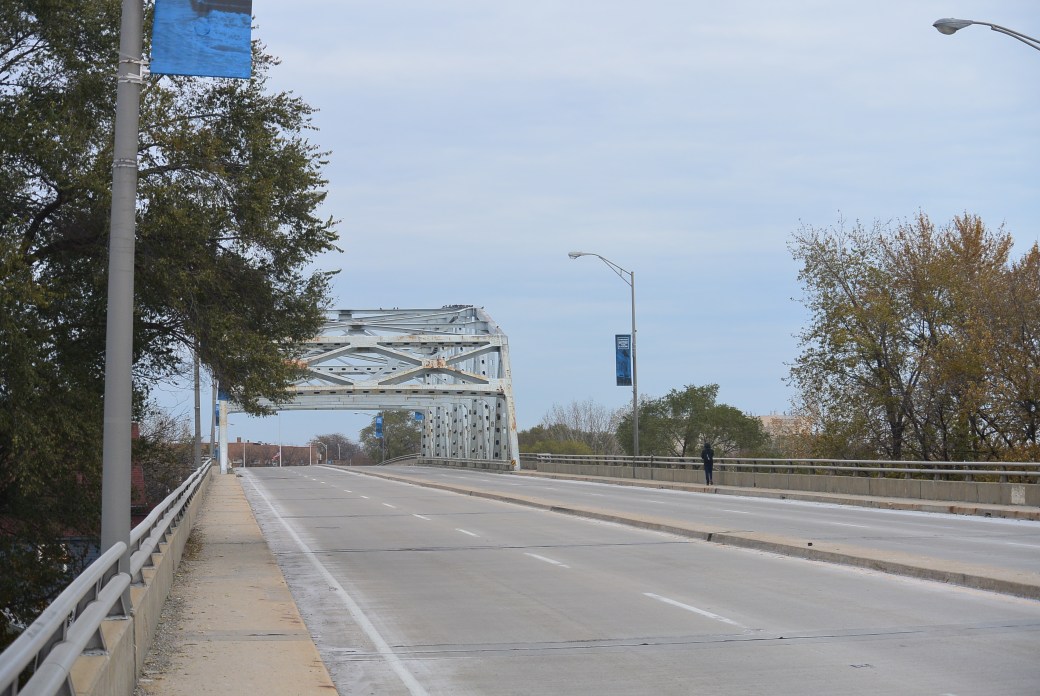

DSC_2581

Western Avenue Bridge

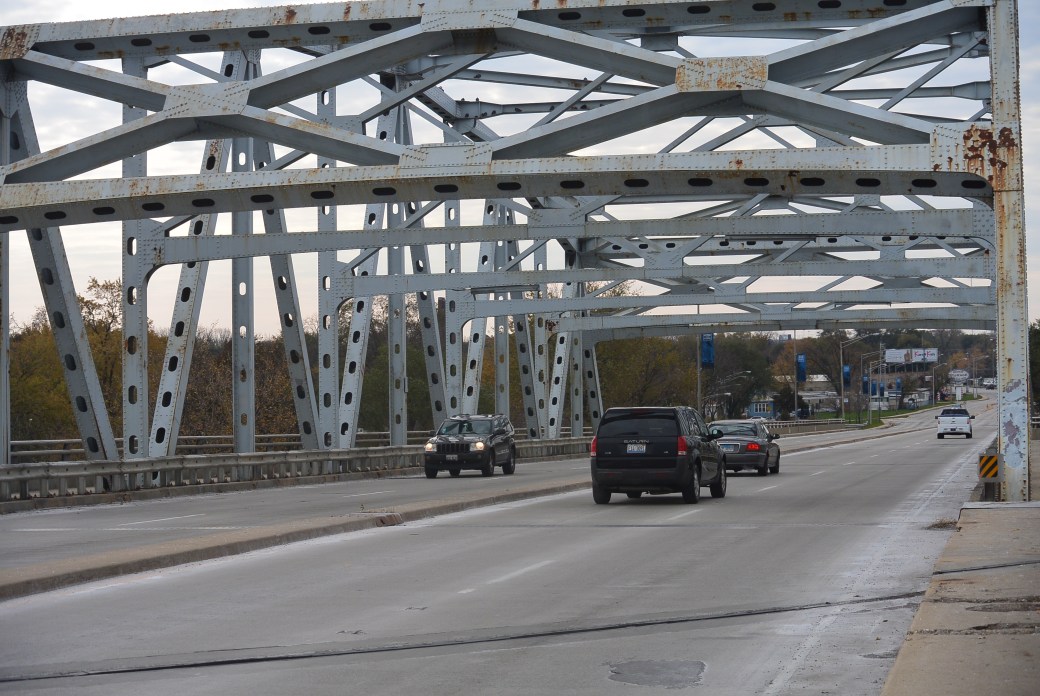

DSC_2580

Western Avenue Bridge

DSC_2575

Western Avenue Bridge facing Chatham Avenue Bridge

DSC_2574

Same as above

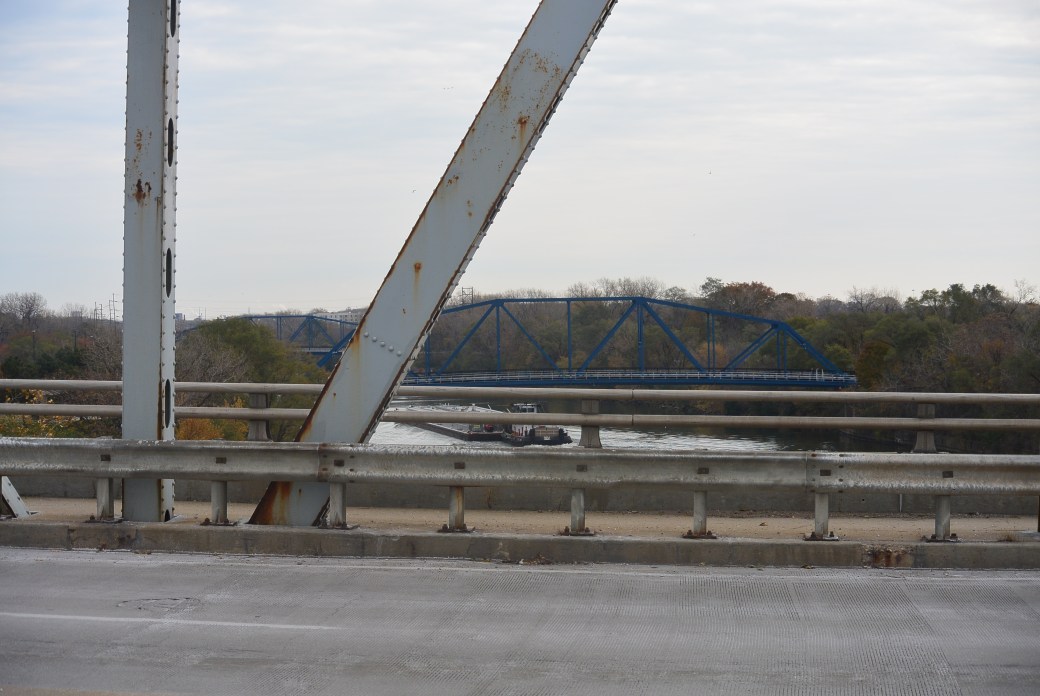

DSC_2573

Same as above

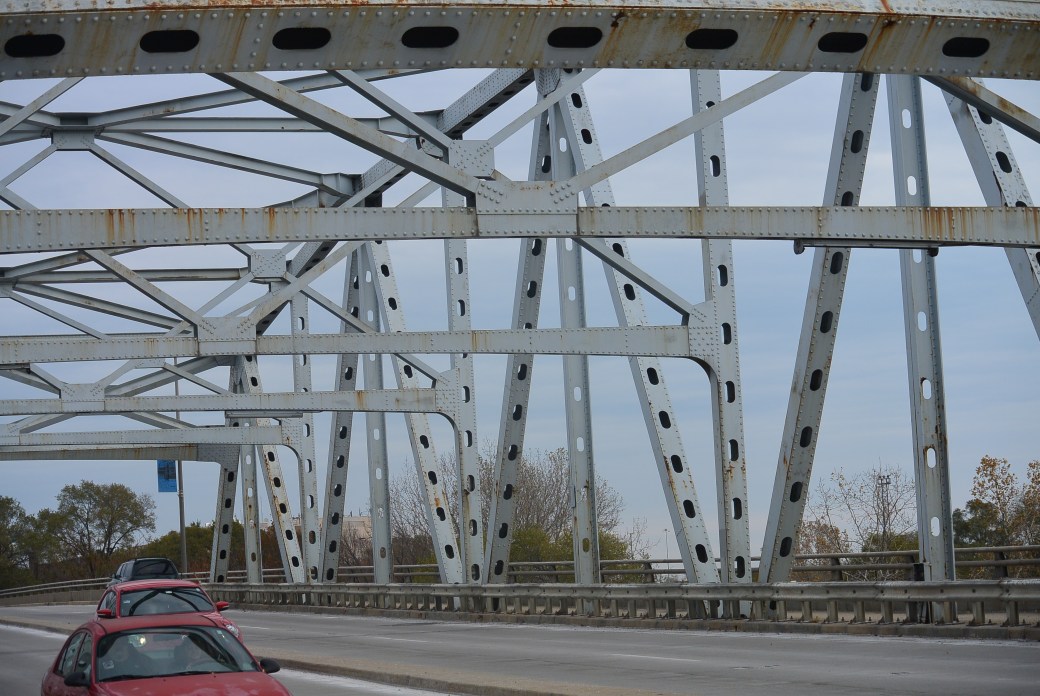

DSC_2571

Western Avenue Bridge

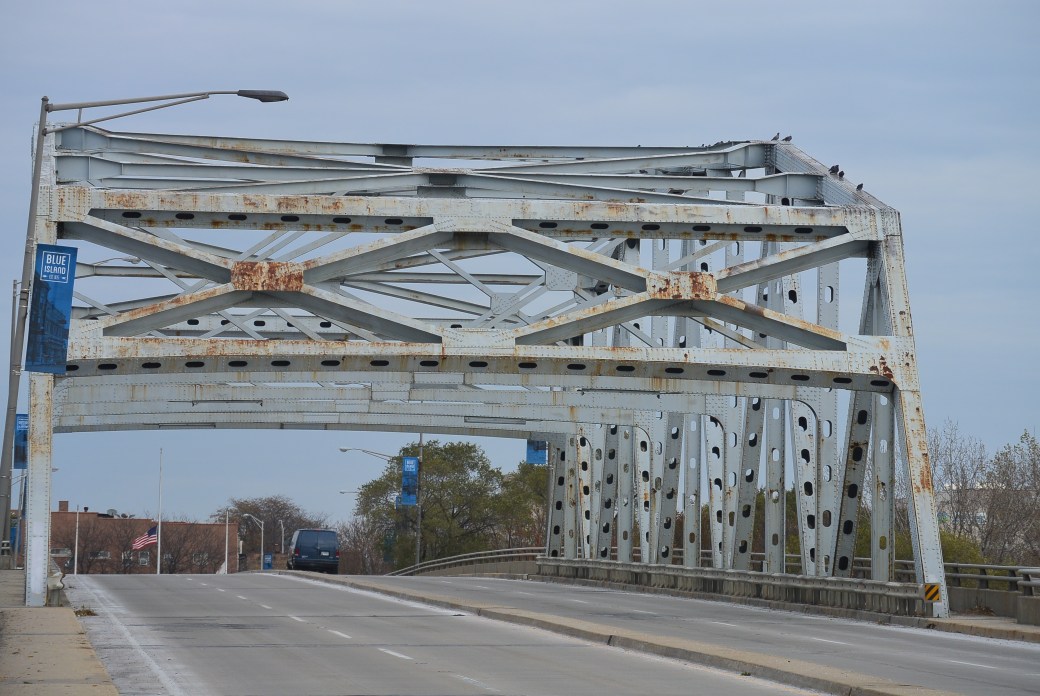

DSC_2570

Western Avenue Bridge

The Western Avenue Bridge crosses the Cal Sag Canal in Blue, Island.  Adjacent bridges are at Kedzie Avenue and the Metra Cal Sag Bridge.   The Structure was built in 1966.  Builder is unknown.   It is a polygonal Warren through truss bridge.

DSC_2570

Western Avenue Bridge

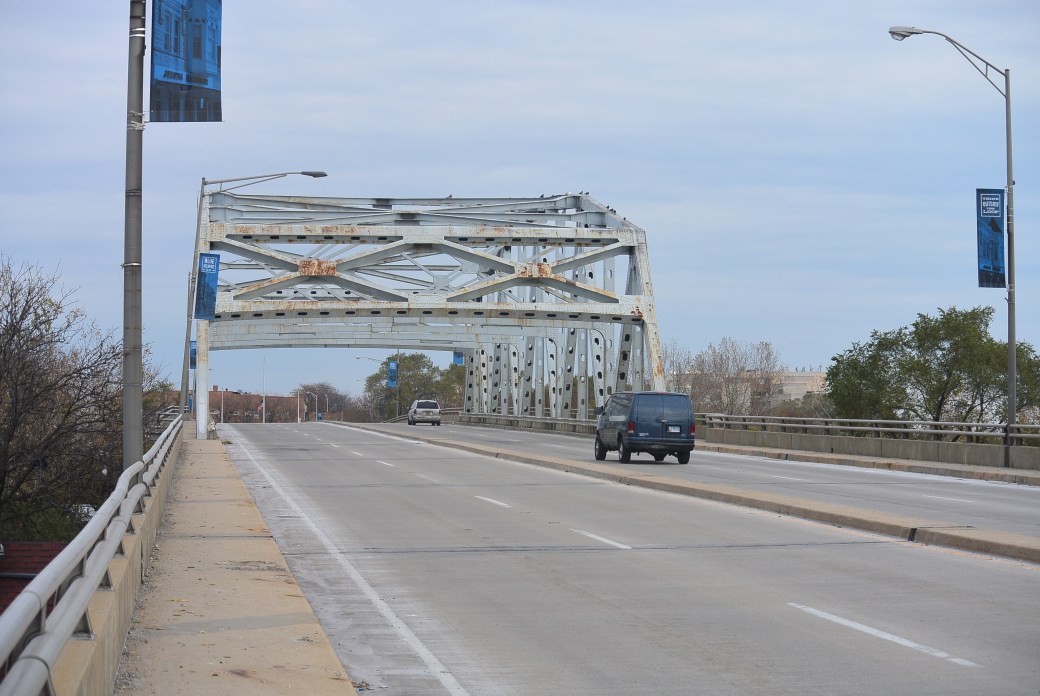

DSC_2569

Western Avenue Bridge

The largest span measures 245.6 feet.   Structure length is 1,122.7 feet.  Roadway width measures 53.1 feet.

Bridge Inspection  9/2012

Deck                           Condition                  Rating           Serious.   3 out of 8

Superstructure       Condition.                 Rating           Serious.   3 out of 8

Substructure.           Condition.                Rating.          Serious.    3 out of 8

Appraisal. Functionally obsolete
