Metra Cal Sag Bridges

This is a pair of bridges over the Cal Sag Channel in Blue Island. Adjacent structures are the Blue Island yard and the Western Avenue Bridge.  Builder is unknown.  Date of construction mid 20th century.

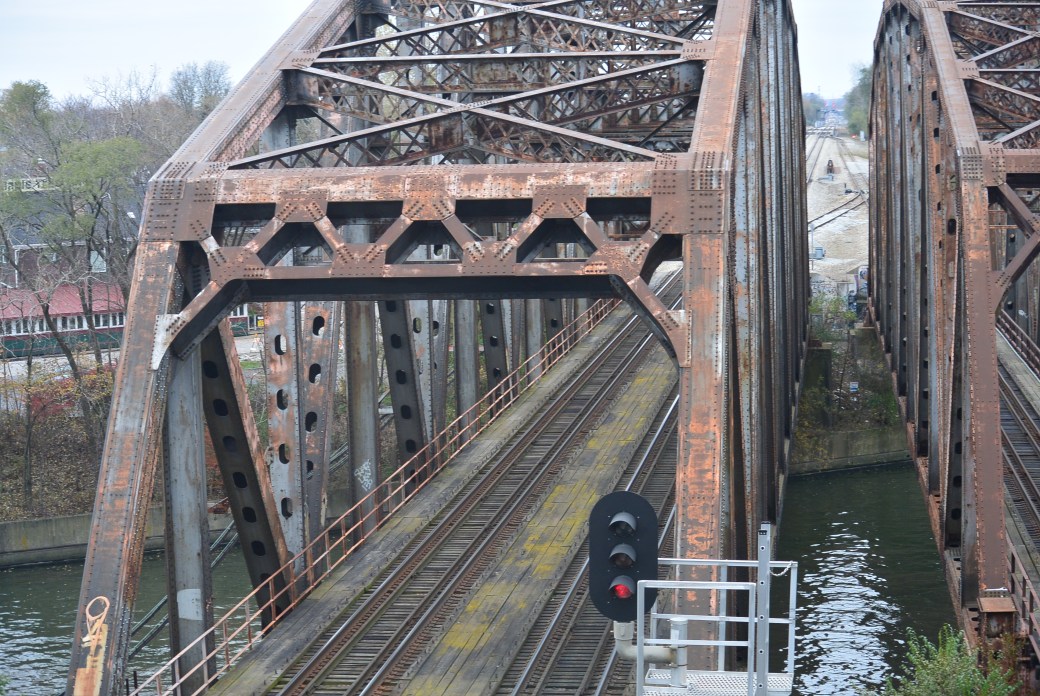

DSC_2579

Metra Cal Sag Railroad Bridges

The bridges are metal 12 panel rivet-connected polygonal Warren through truss, fixed.    Largest span is 400 feet.  There is one main span.  There are two tracks on the east bridge.  There is one track on the west bridge.

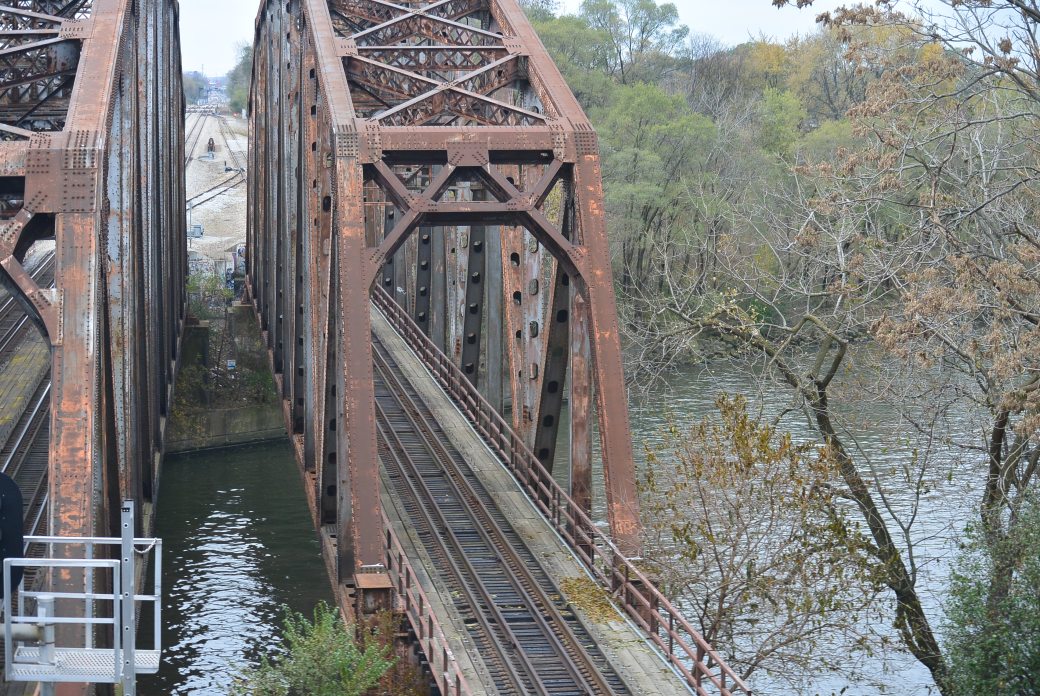

DSC_2578

Metra Cal Sag Railroad Bridges

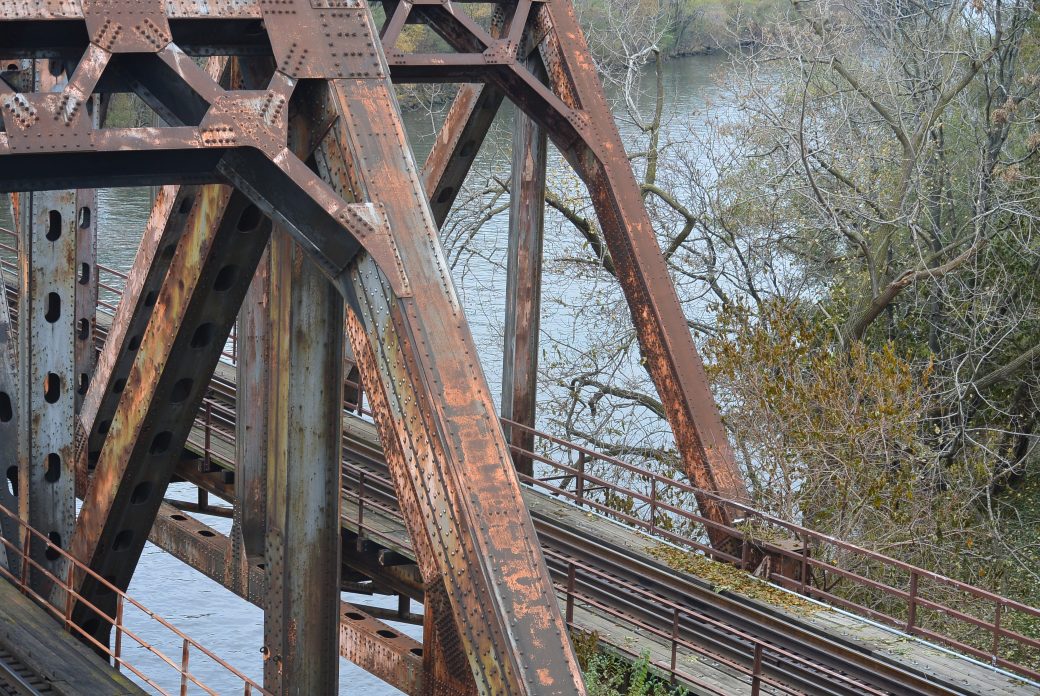

DSC_2577

Metra Cal Sag Railroad Bridges

The bridges were built for the Rock Island Railroad. The tracks lead to downtown Chicago.

The tracks currently service Metra Rock Island commuter trains and occasional freight trains.

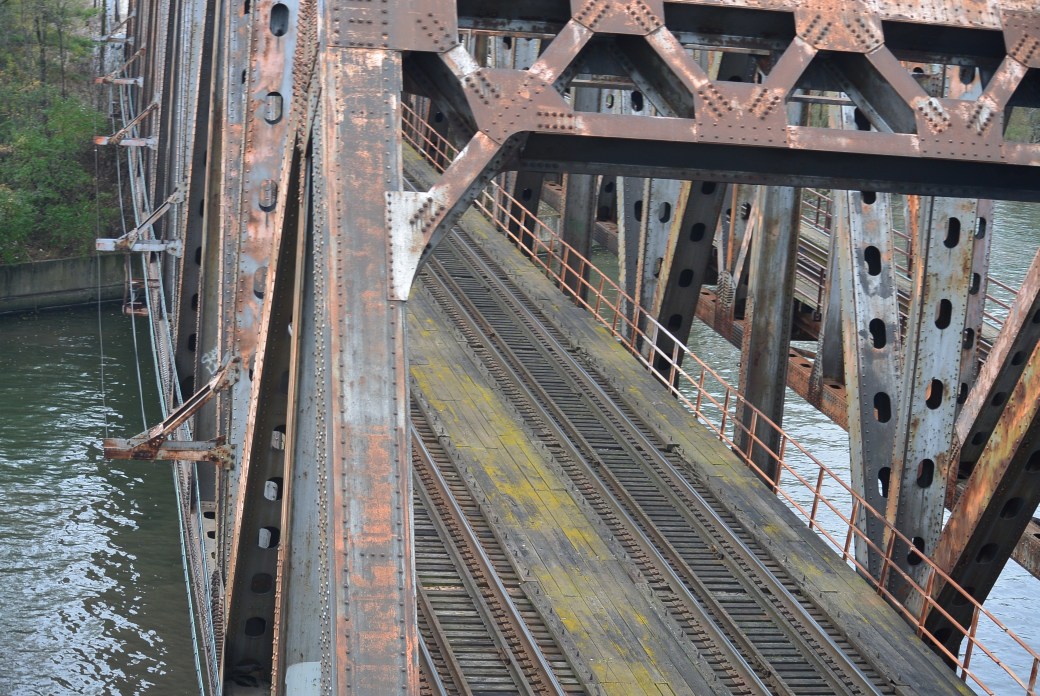

DSC_2576

Metra Cal Sag Railroad Bridges
