Columbus Drive Bridge over the Chicago River



Revised 11/28/2017

The Columbus Drive Bridge  ( 300 east and 400 north ) crosses the main branch of the Chicago River 3/10 a mile west of the river mouth.   Currently it is the world’s second largest bascule bridge.   It was built in 1982.   Cost of construction was $33 million. The largest span is 269 feet.  Total length  is 389 feet.   Deck width is 89.8 feet.

It is a single piece box truss similar to the Loomis Street Bridge.  There are 8 trusses 4 in each leaf.    During its short history, there have been two incidents involving the bridge:  1 April, 15, 1983 cracks were found in three of the gears;  May, 1984  bridge failed to open due to binding of the center bolt.

DSC_2466

Columbus Drive Bridge over the Chicago River

This is also known as the William Fahey Bridge  (a police officer killed in the line of duty).  It is a metal, movable double leaf bascule (fixed trunnion) and approach spans: metal stringer (multi beam) fixed

DSC_2467

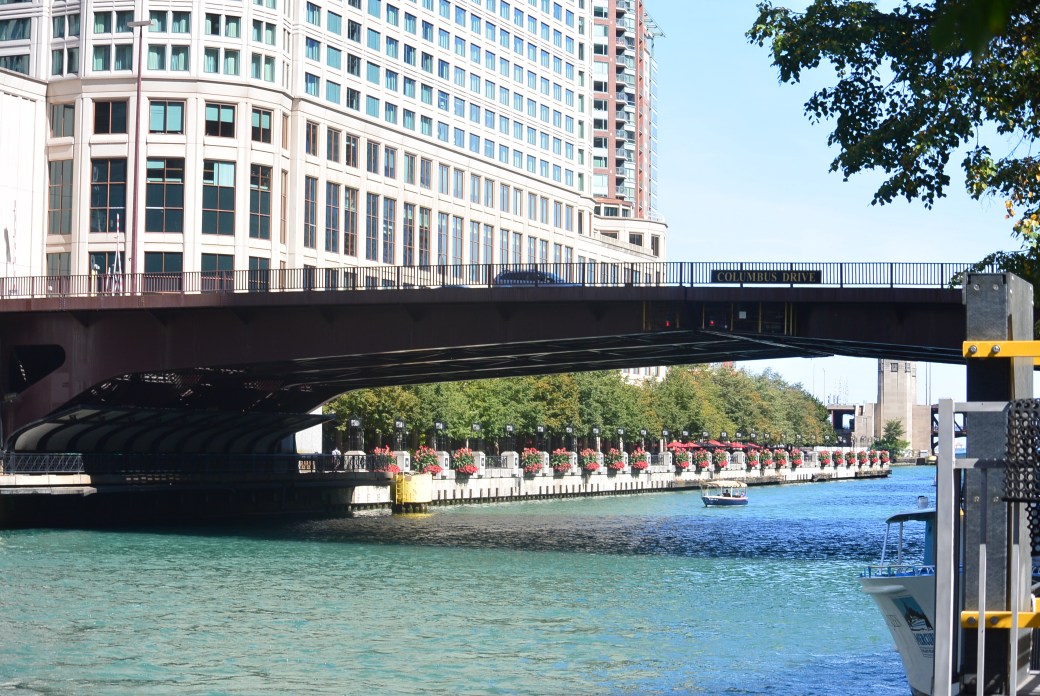

Columbus Drive Bridge

DSC_2468

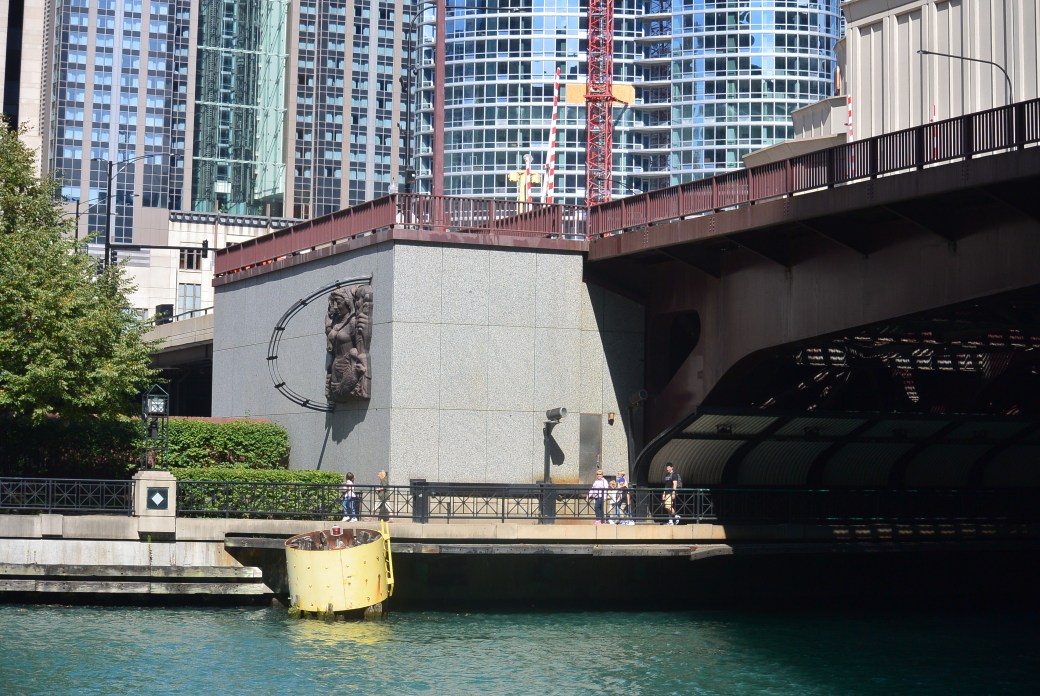

Columbus Drive  Bridge

DSC_2469

Columbus Drive Bridge

DSC_2470

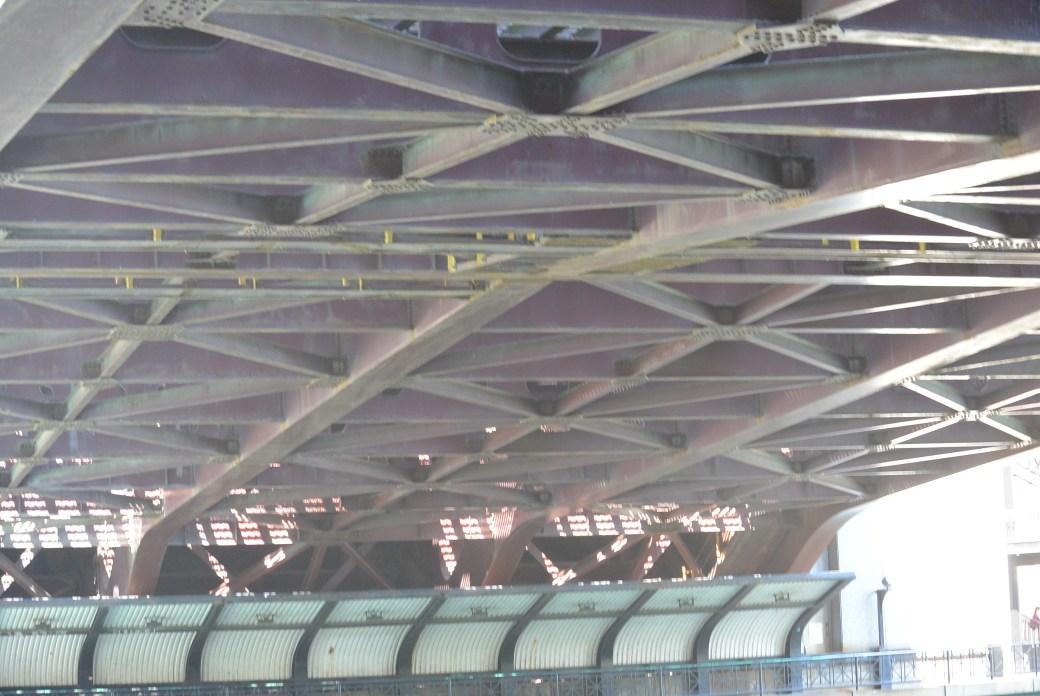

Undersurface Columbus Drive Bridge

DSC_2475

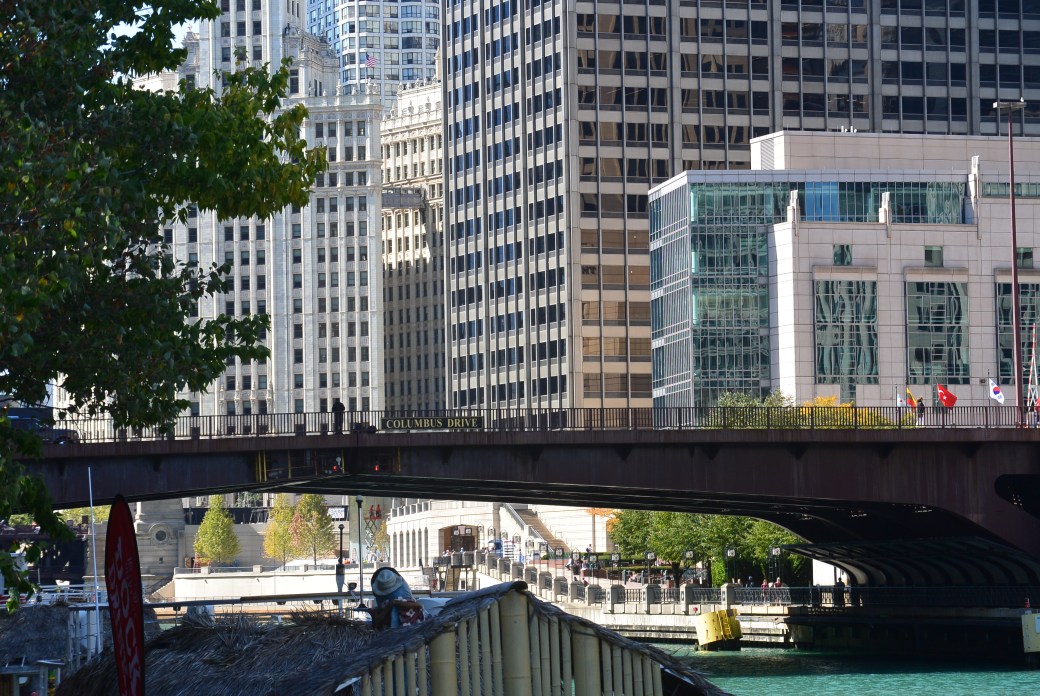

Columbus Drive Bridge

DSC_2472

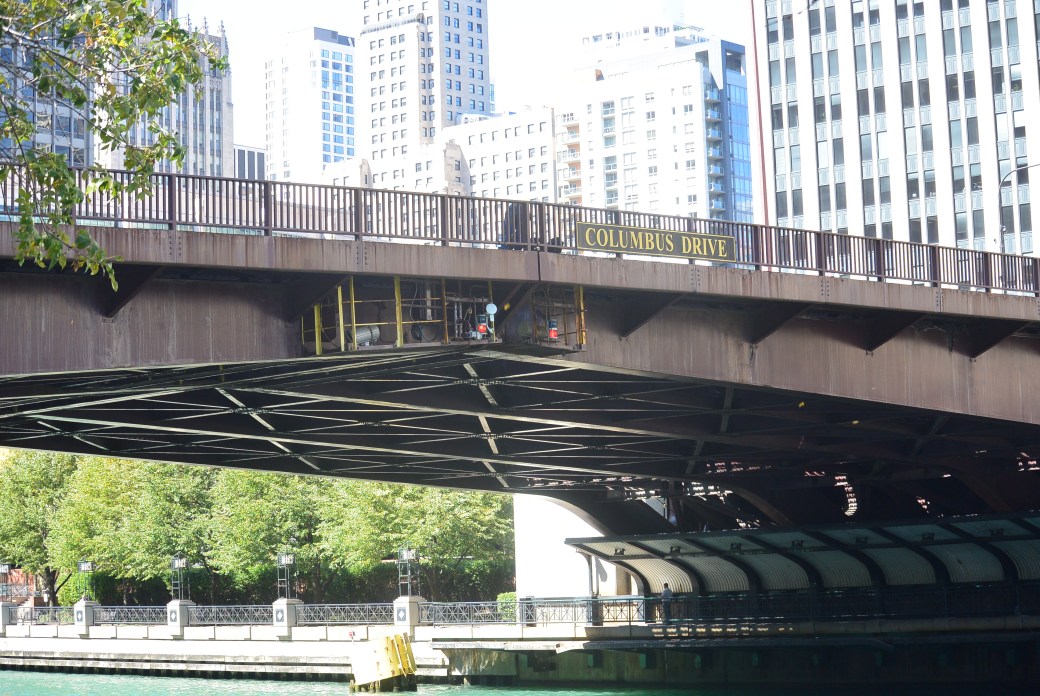

Columbus Drive Bridge

DSC_2477

Columbus Drive Bridge

DSC_2478

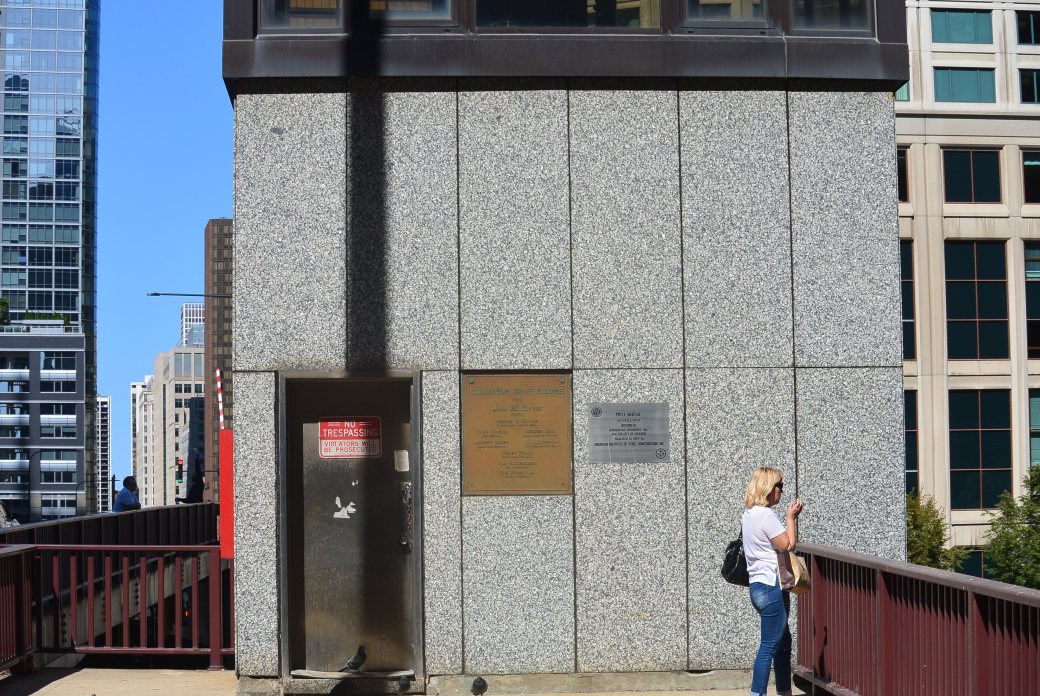

Bridge Keeper House Columbus Drive Bridge

DSC_2479

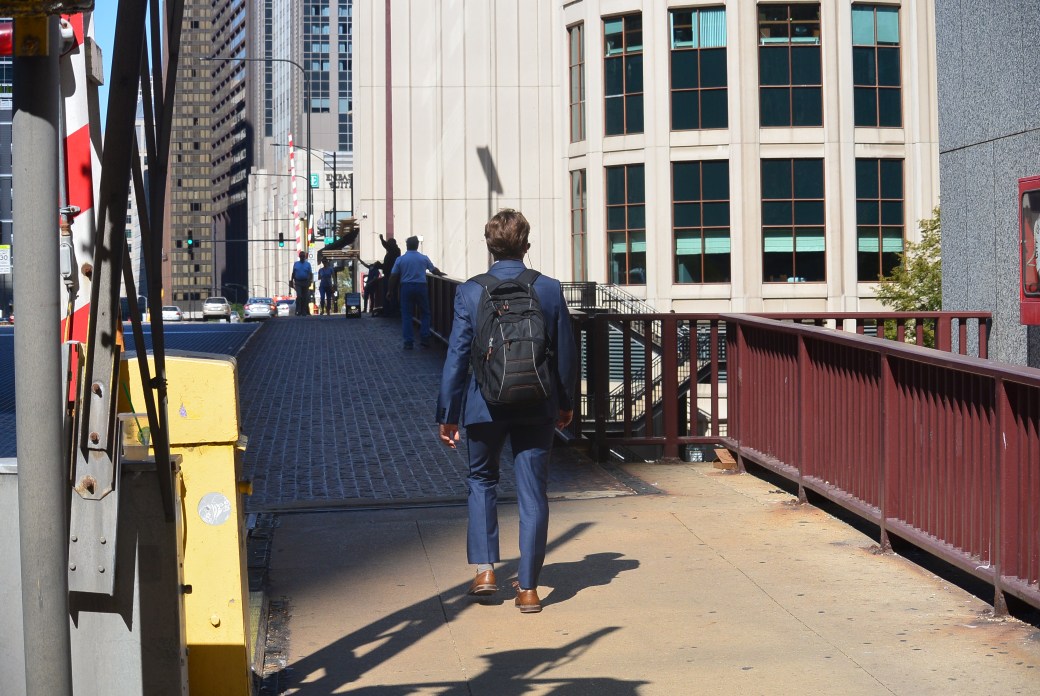

Columbus Drive Bridge

DSC_2480

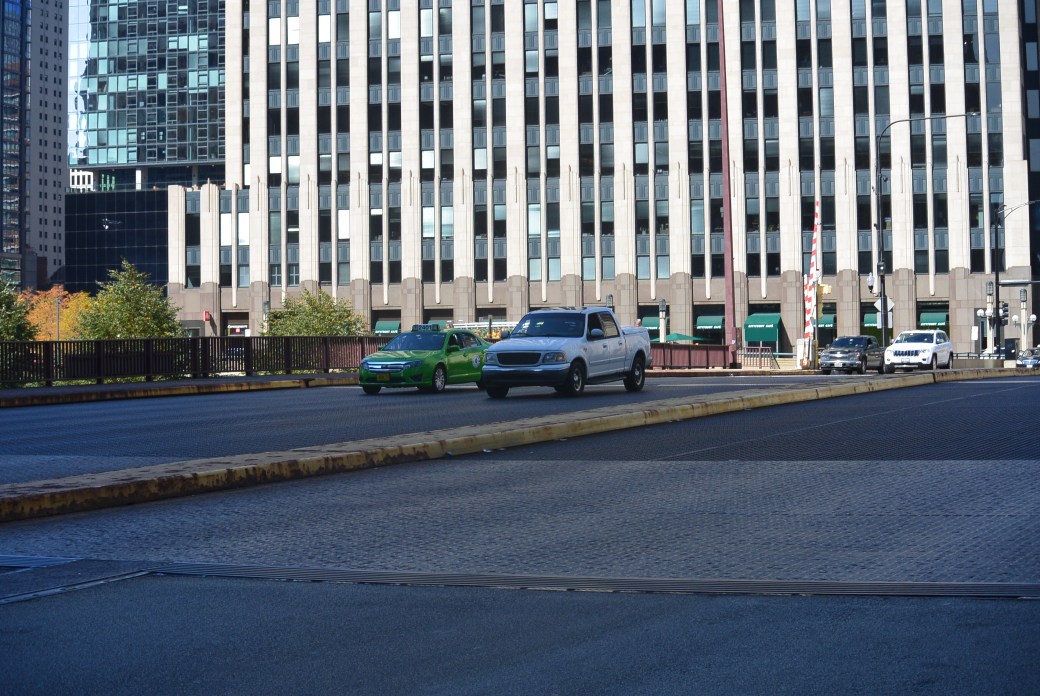

Columbus Drive Bridge

DSC_2481

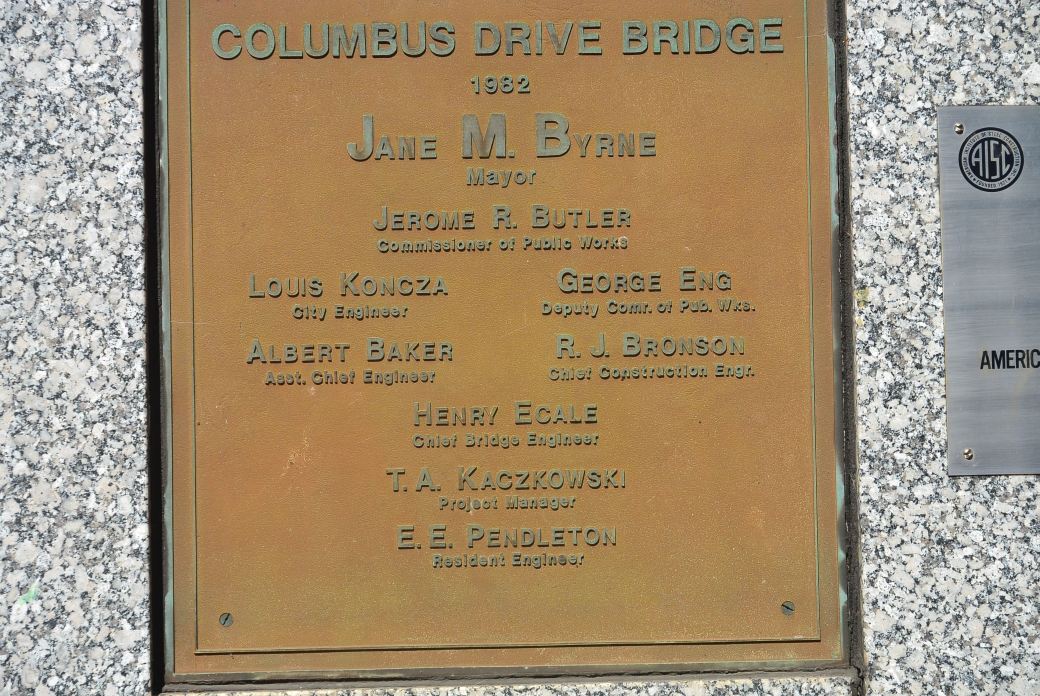

Bridge Plaque Columbus Drive Bridge

DSC_2482

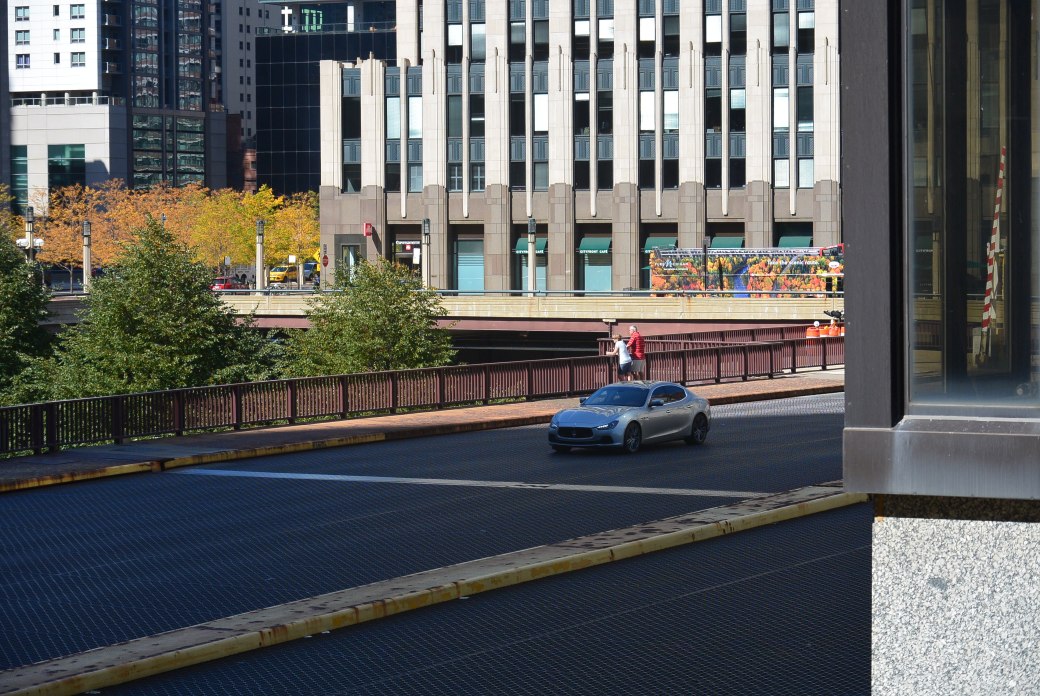

Columbus Drive Bridge

Under Surface Columbus Drive Bridge

Columbus Drive Bridge



General Contractor:  Paschen

Builder  Envirodyne Engineers of Delaware

Chief Engineer. Henry Ecale

Steel Fabricator:  American Bridge Company

Chief Construction Engineer  R.J. Bronson


Inspection 12/2010

Deck Condition.                          Rating.           Satisfactory  6 out of 9

Superstructure   Condition.   Rating.            Satisfactory  6 out of 9

Substructure.     Condition.    Rating.           Good.               7 out of 9

Sufficiency Rating. 95 out of 100
