Ashland Avenue Bridge over the Chicago River

DSC_2200

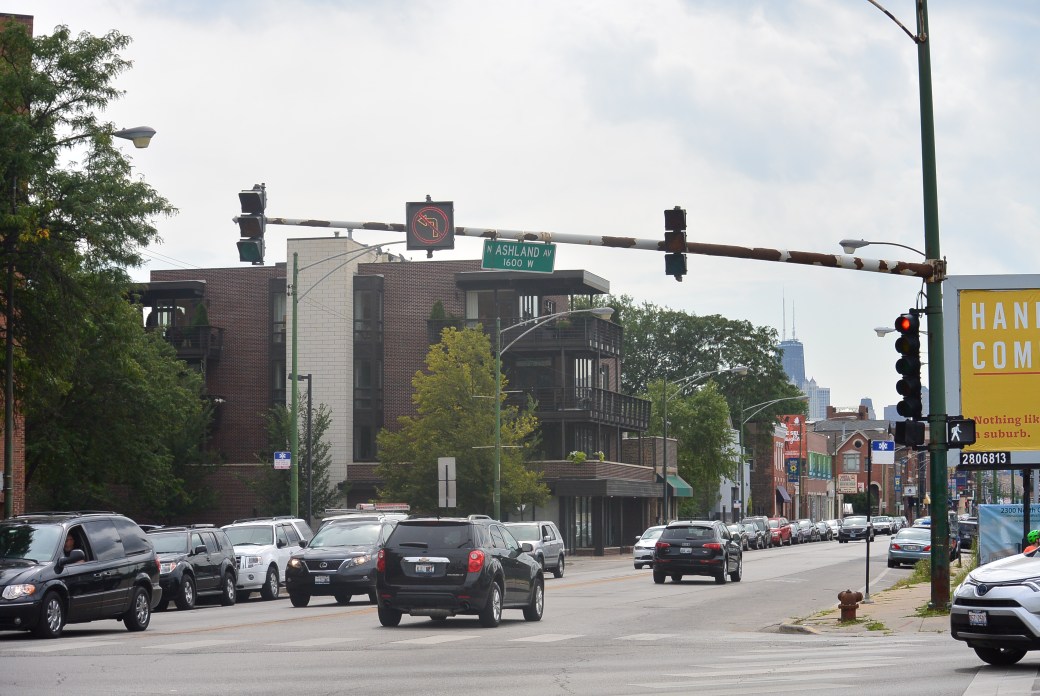

Entrance to the Ashland Avenue Bridge

     Blog Posted 1/3/2018

     The North Ashland Avenue Bridge (2201 North: 1600 West) crosses North to South over the North Branch Chicago 4.9 miles from the river mouth. The current bridge is the first and only bridge at this site.  It opened on August 20, 1936.

     It is a metal rivet-connected Pratt Pony Truss, movable: double leaf bascule (fixed trunnion) and approach spans, metal stringer (multibeam), fixed.  There is one main span 4 approach spans. The main span measures 232 feet. The structure length is 386.5 feet. The roadway width is 60 feet.   There are four lanes of traffic.

Contractors  were

Design:  Division of Bridges and Viaducts   City of Chicago

Superstructure Contractor:  Kettler Elliot Company

Substructure Contractor:  FitzSimons and Connell Company Company

     In 1993, the bridge was rehabbed.

     In 1995, bridge was charged to fixed.

     Construction Costs were $1.7 million.

DSC_2201

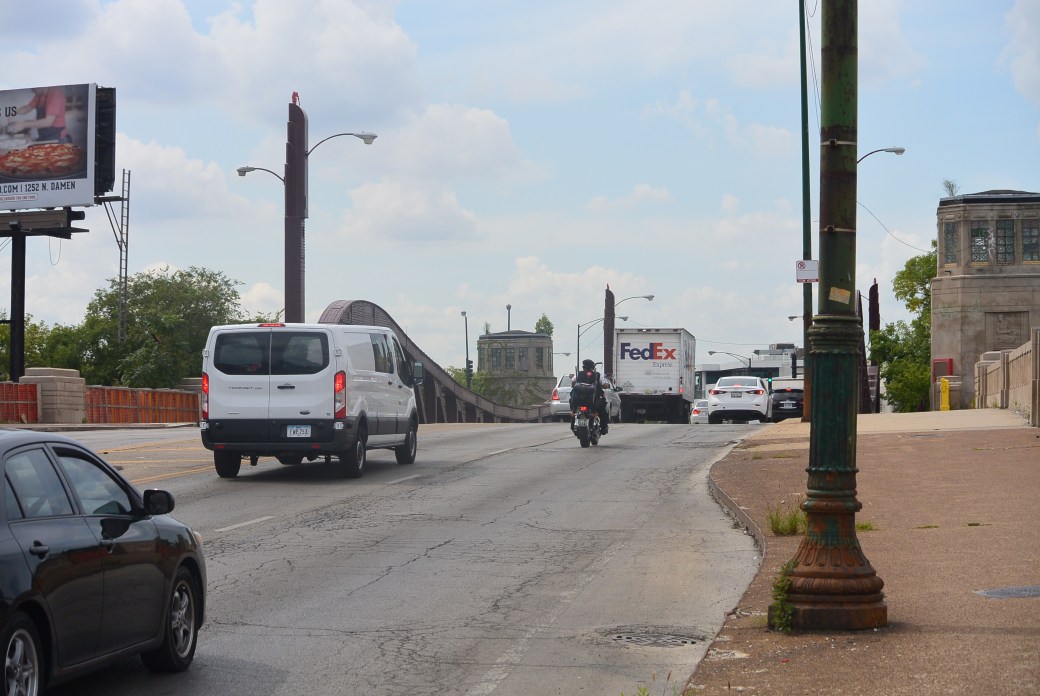

Ashland Avenue Bridge

DSC_2202

Bridge Keeper House Ashland Avenue Bridge

DSC_2205

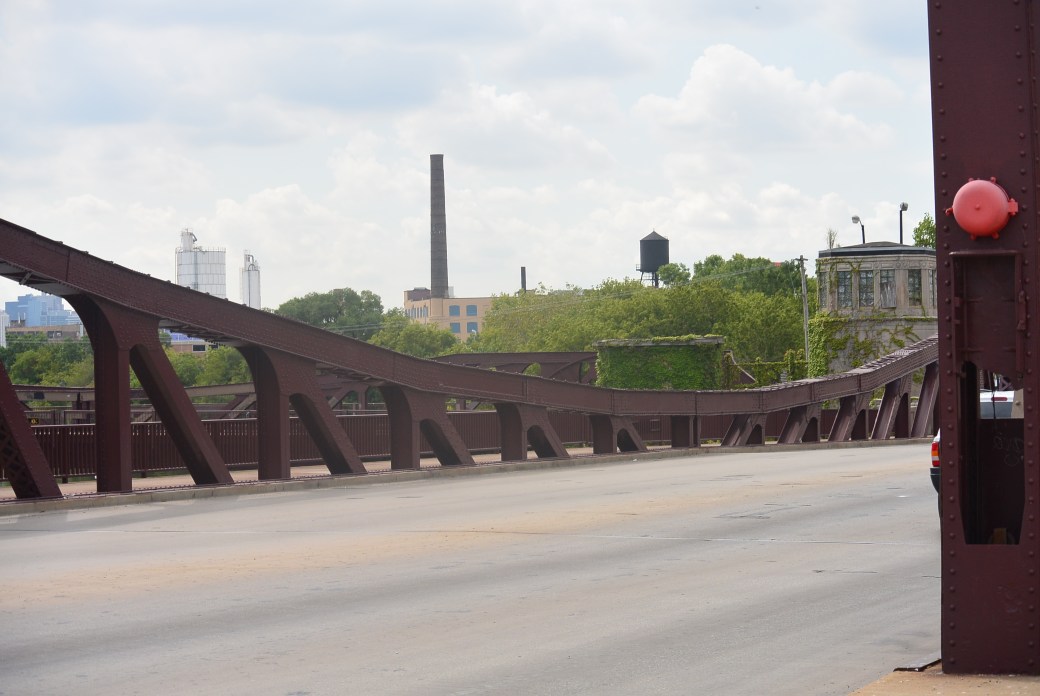

Ashland Avenue Bridge

DSC_2208

Ashland Avenue Bridge

DSC_2209

Design on Ashland Avenue Bridge Keeper House

DSC_2210

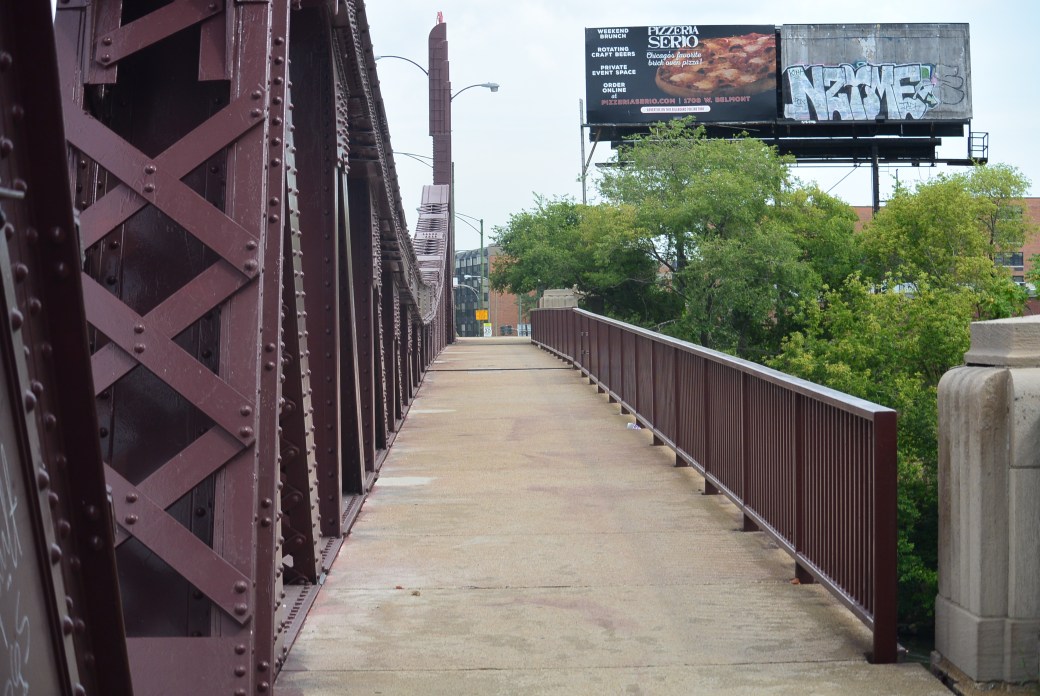

Ashland Avenue Bridge

DSC_2222

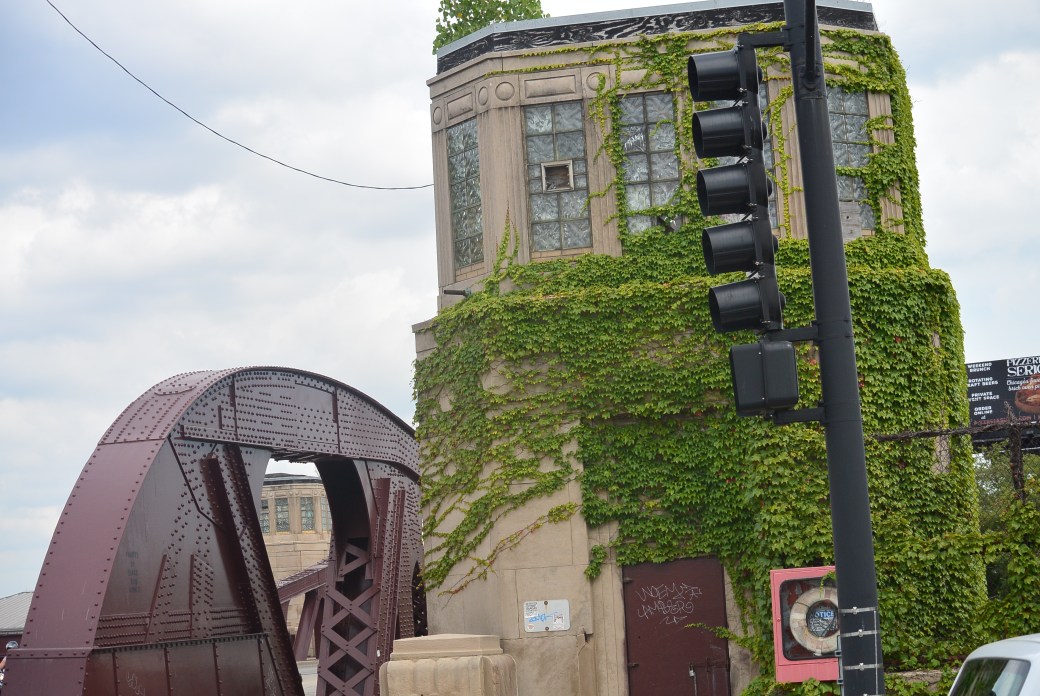

Bridge Keeper House Ashland Avenue Bridge

DSC_2225

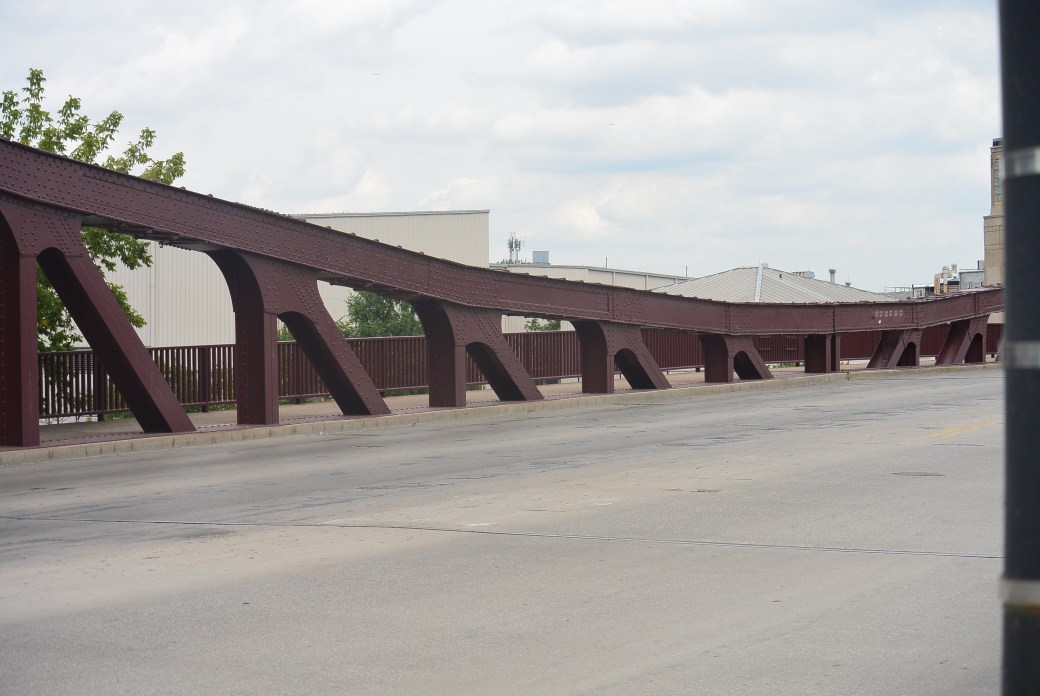

Ashland Avenue Bridge

DSC_2226

Ashland Avenue Bridge

DSC_2227

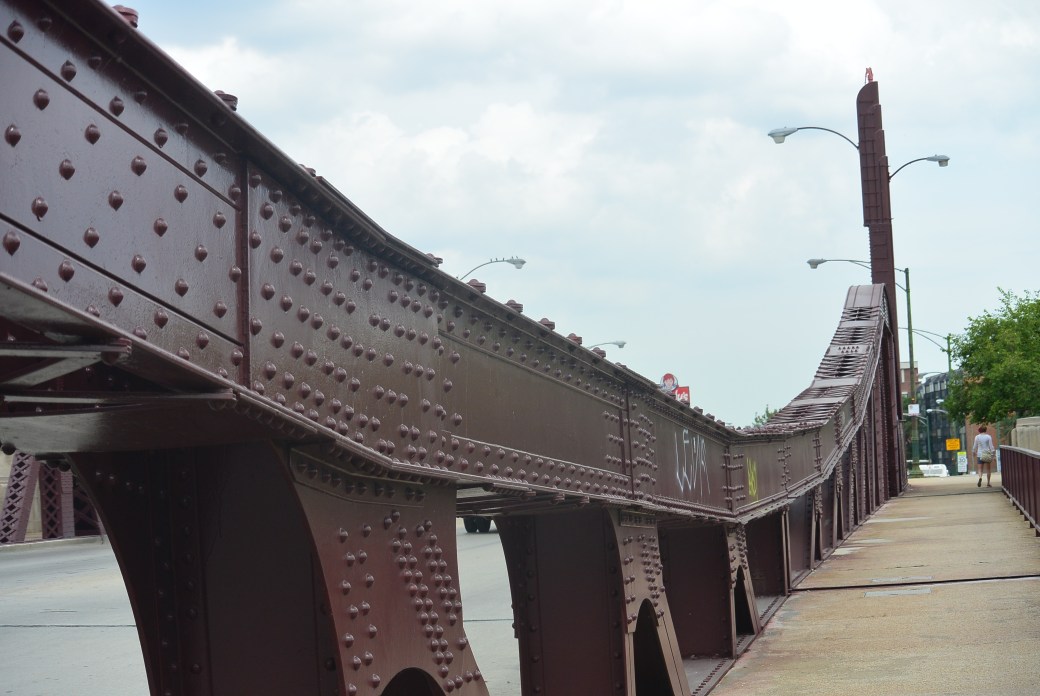

Ashland Avenue Bridge

DSC_2228

View from the Ashland Avenue Bridge

DSC_2229

Ashland Avenue Bridge

DSC_2212

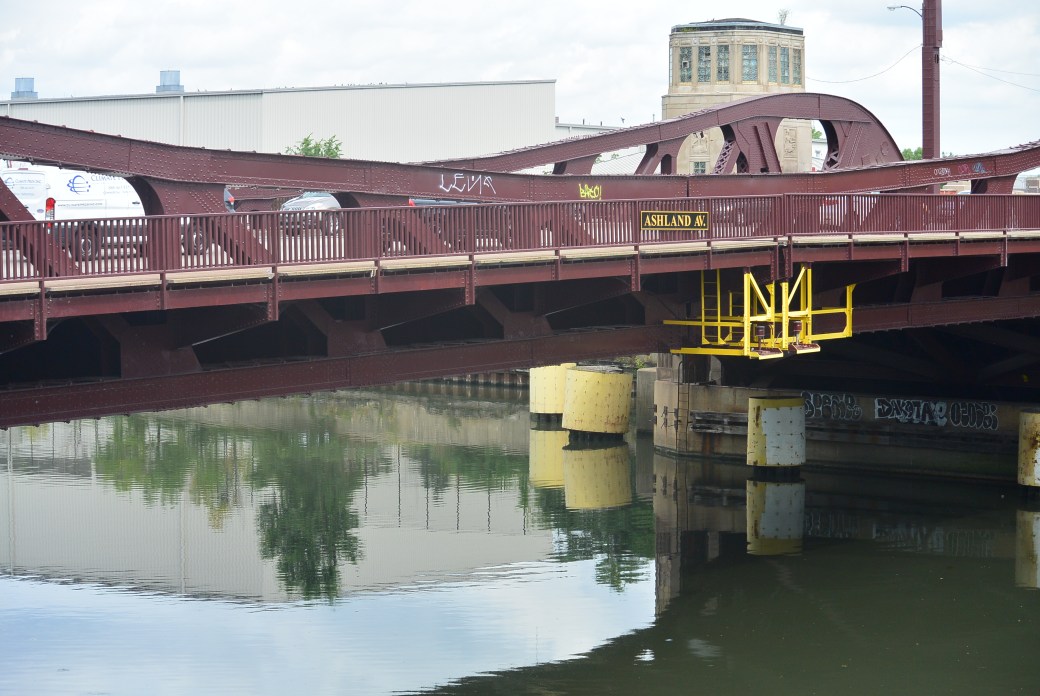

View of the Ashland Avenue Bridge from the Western Avenue Bridge

DSC_2213

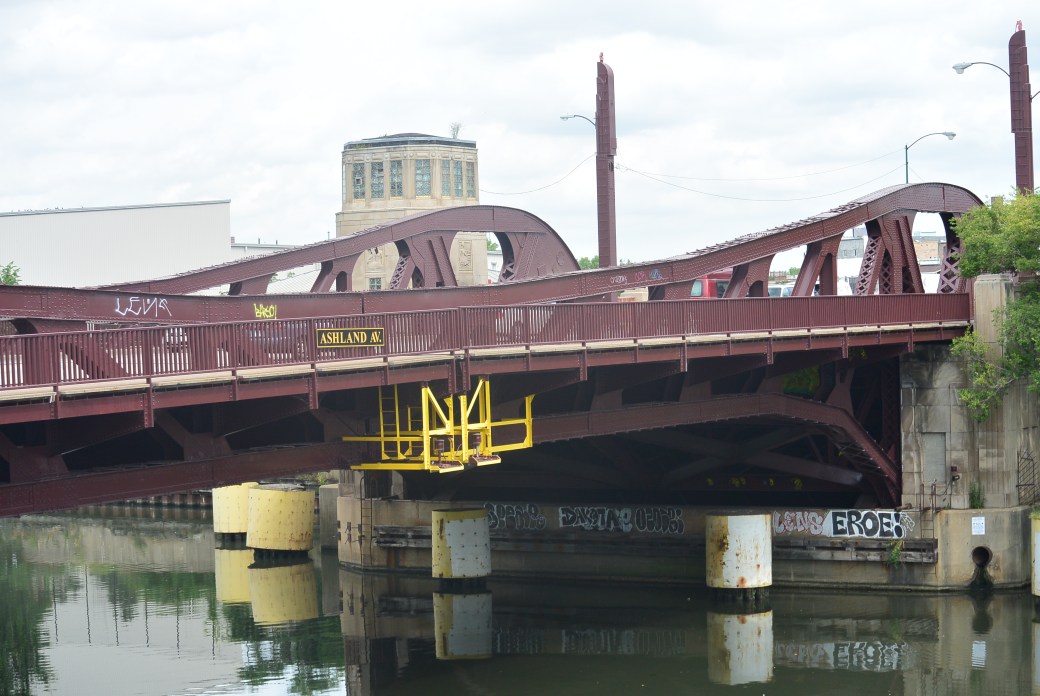

Same as above

Bridge Inspection  11/2010

Deck                            Condition.                Rating.    Satisfactory. 6 out 9

Superstructure.       Condition.               Rating.    Satisfactory  6 out of 9

Substructure.          Condition.                Rating.     Good 7 out of 9

Sufficiency Rating   94/100
