18th Street Railroad Bridge

DSC_1737

18th Street Railroad Bridge

DSC_1736

18th Street Railroad Bridge

The 18th street railroad bridge is actually 2 bridges.  One is called the Saint Charles Air Line Bridge.    This is currently owned by the CN railroad.  It is the southern most of the two bridges.  It was originally 260 feet in length.  It was  built in 1919.  It was designed to be modified when the Chicago River straightening project was completed.

The bridge was was designed by the Strauss Bascule Bridge Company.  It was fabricated by the American Bridge Company.  It was a double track structure.  It was assembled in its original location by the Ferro Construction Company.    The original substructure was built by the Foundation Company of New York.

When the river straightening project was completed, the bridge was moved and shortened in 1930.  E.J. Albrecht Company built the relocation substructure.  The Stroebel Steel Construction Company dismantled and and re-erected the superstructure in its location.  The bridge was shortened to 220 feet.  This  bridge  is still operational.

The adjacent bridge was commissioned  by the Baltimore and Ohio Railroad.   It was constructed by the American Bridge Company.    It contained two tracks.  It is a single leaf Strauss trunnion bascule bridge.  It measures 186 feet in length.  Its supports are concrete.

DSC_2399

18th Street R.R. Bridge

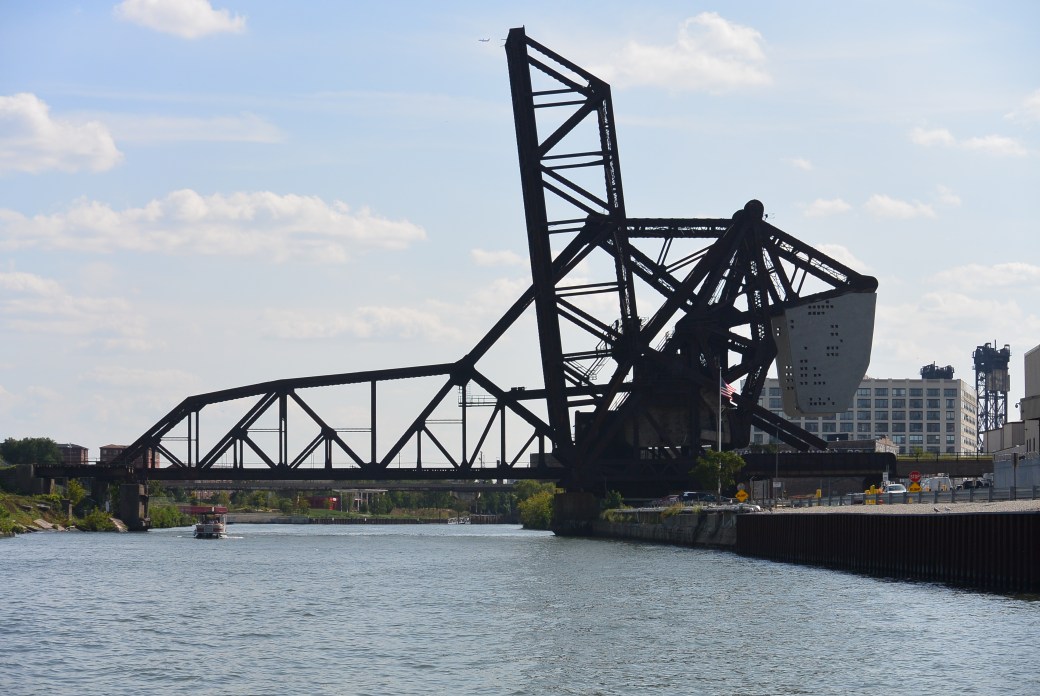

DSC_2400

18th Street R.R. Bridge

DSC_2401

Counter Weight 18th Street Bridge

DSC_2412

18th Street Bridge

DSC_2413

18th Street R.R. Bridge

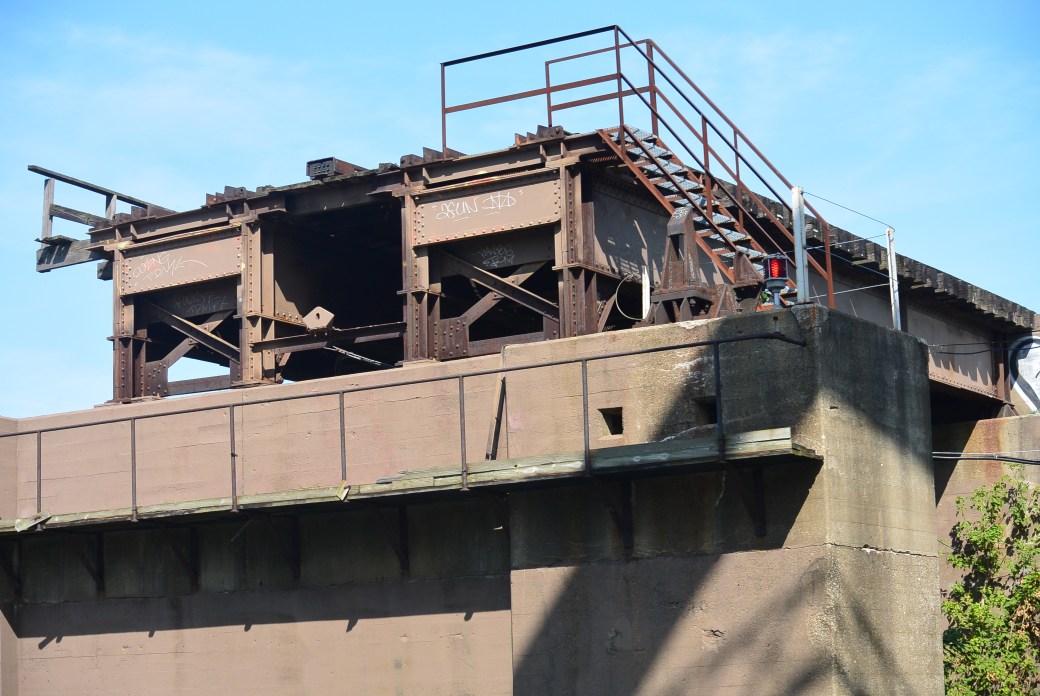

DSC_2414

18th Street R.R. Bridge
