Southwest Highway Bridge over Cal Sag Canal

DSC_2486

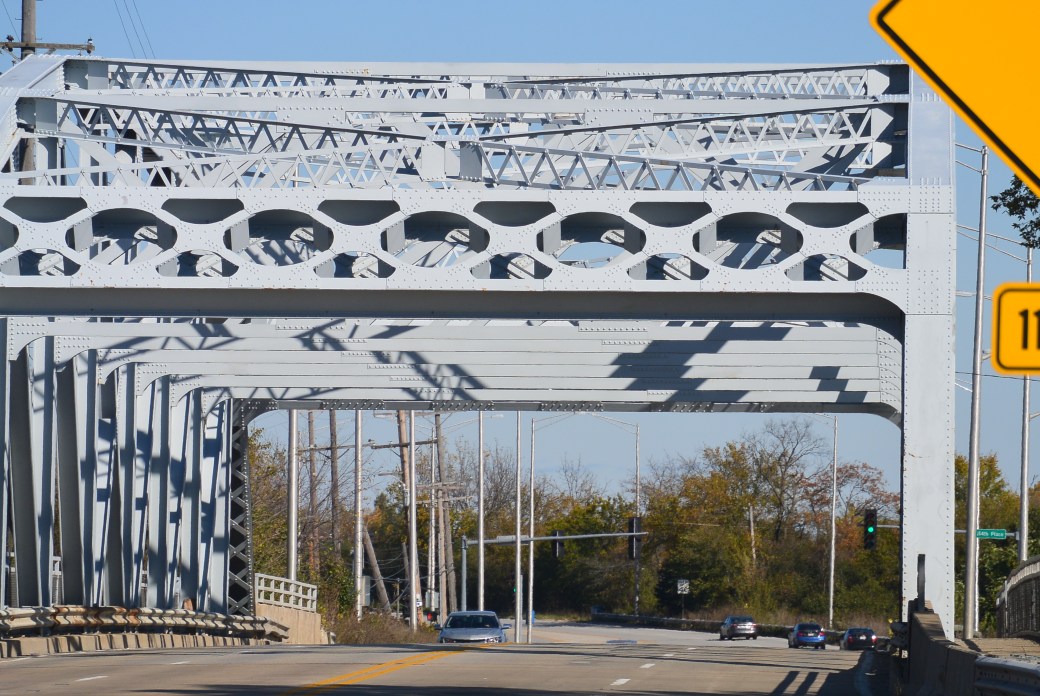

Southwest Highway Bridge over Cal  Sag Canal

     The Southwest Highway Bridge crosses the Cal Sag Canal between the LaGrange Road Bridge and the Harlem  Avenue Bridge.   It was built in 1931.  It was rehabbed in 1971 and 2003.The builder/contractor is unknown.

DSC_2487

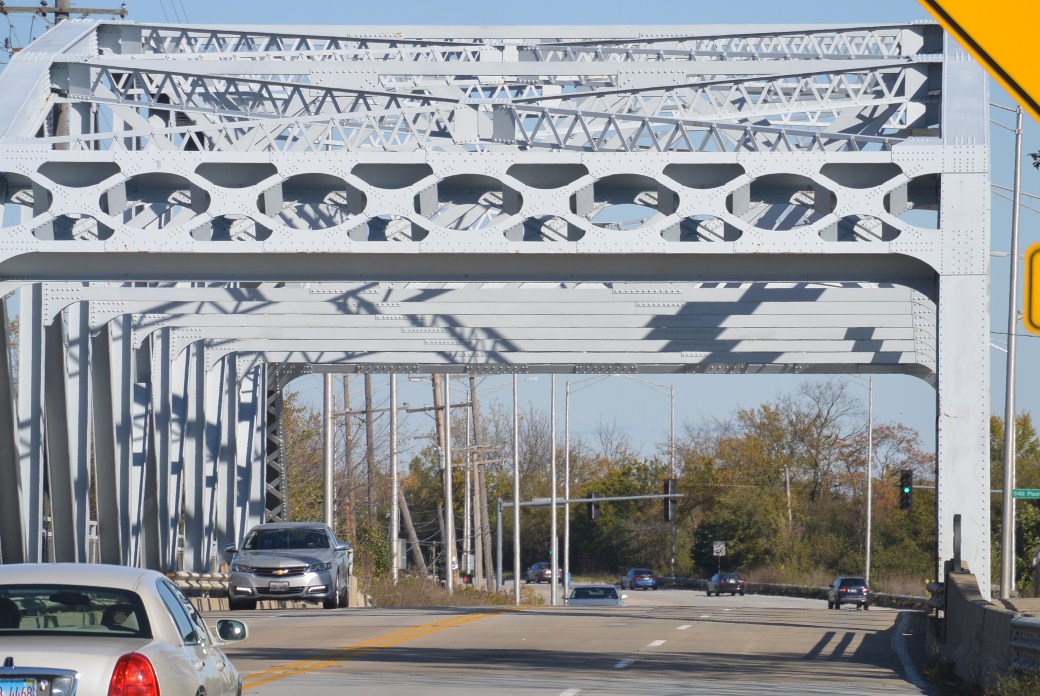

Southwest Highway Bridge over Cal Sag Canal

     It is a metal 9 panel rivet-connected Parker through truss, fixed and approach spans: metal continuous stringer (multi-beam) fixed.  There is one main span and four approach spans. The main span length is 216 feet.  The structure measures 346.5 feet.  Roadway width is 43.6 feet.

DSC_2488

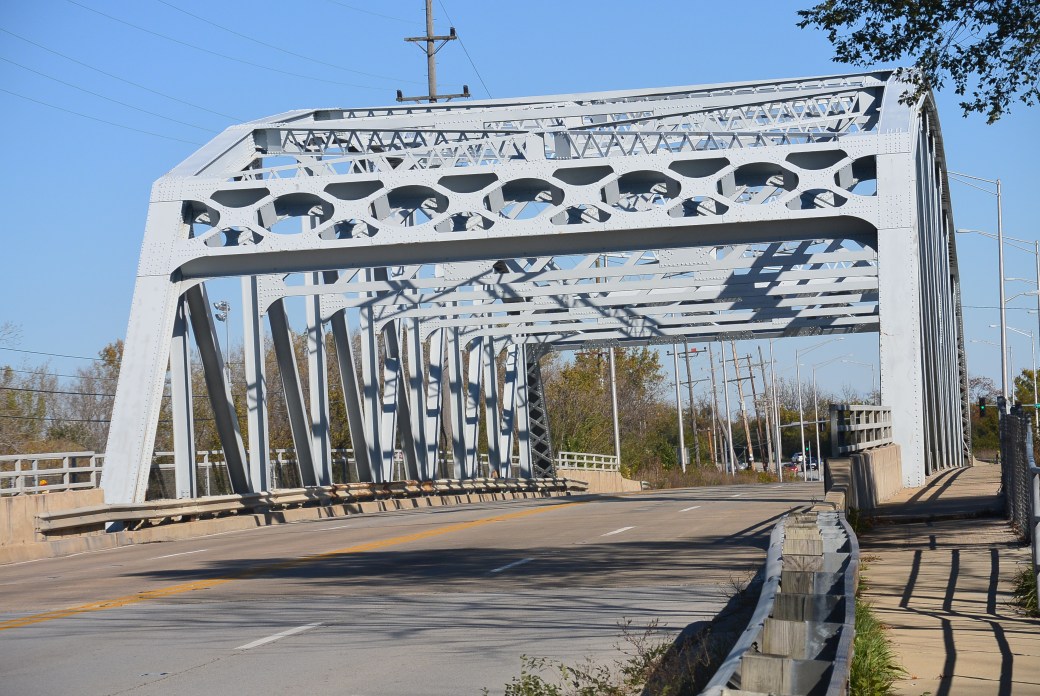

Southwest Highway Bridge over Cal Sag Canal

Bridge Inspection as of 8/2011

Deck                              Condition         Rating.       Satisfactory  6 out of 9

Superstructure.         Condition.        Rating.       Satisfactory 6 out of 9

Substructure.             Condition.        Rating.        Satisfactory 6 out of 9

Appraisal:     Functionally  Obsolete

DSC_2489

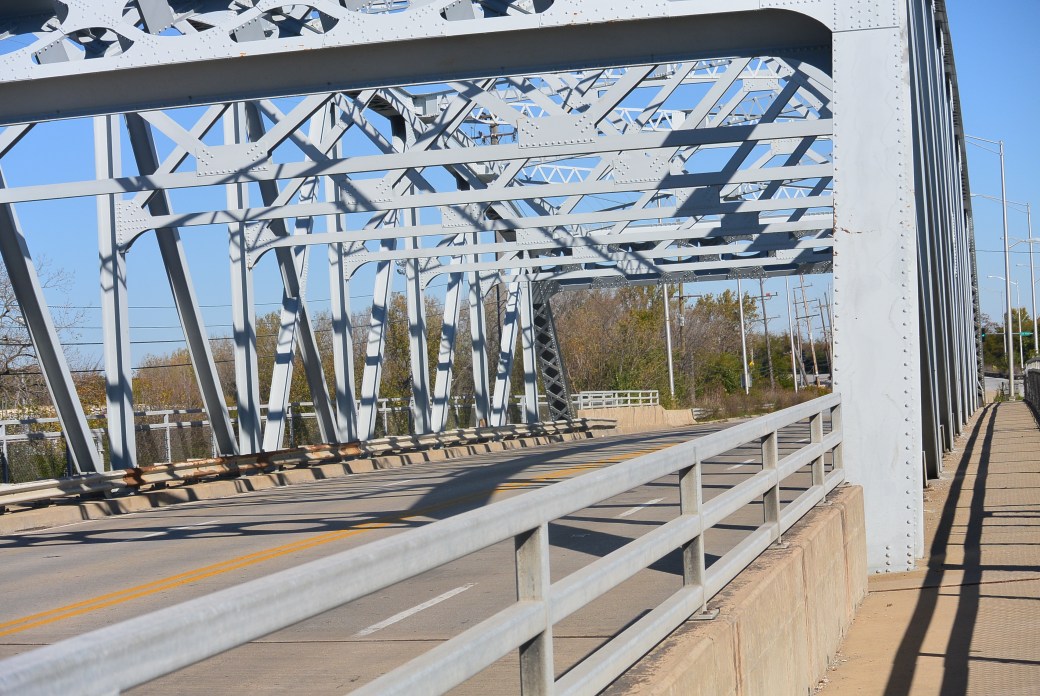

Southwest Highway Bridge over Cal  Sag Canal

DSC_2490

Southwest Highway over Cal Sag Canal

DSC_2491

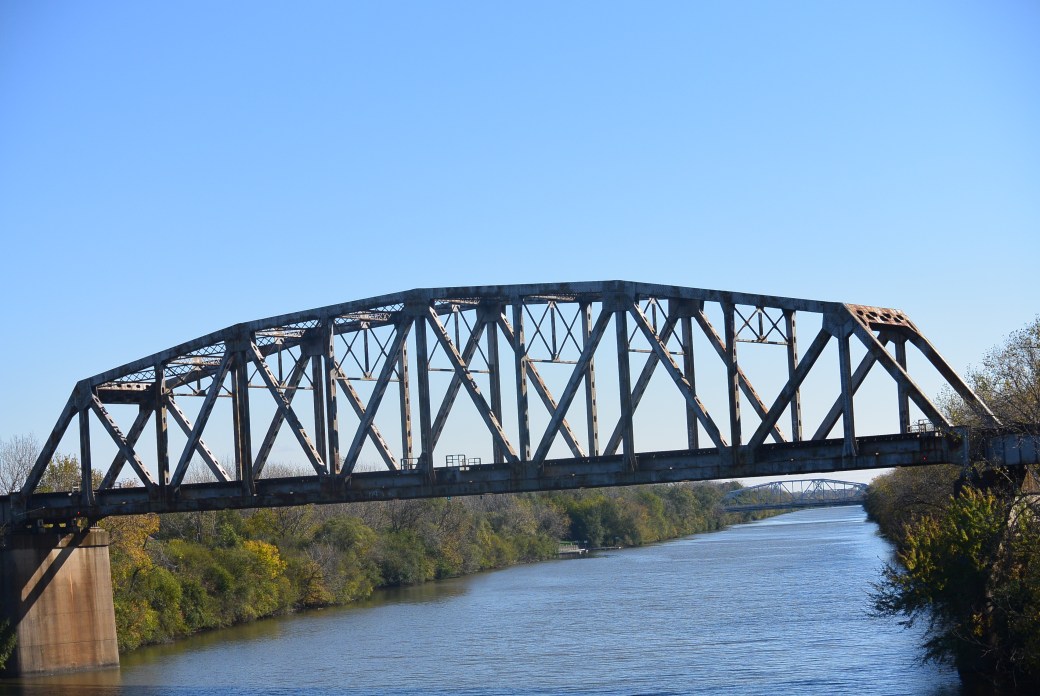

Metra RR Bridge from the Southwest Highway

DSC_2492

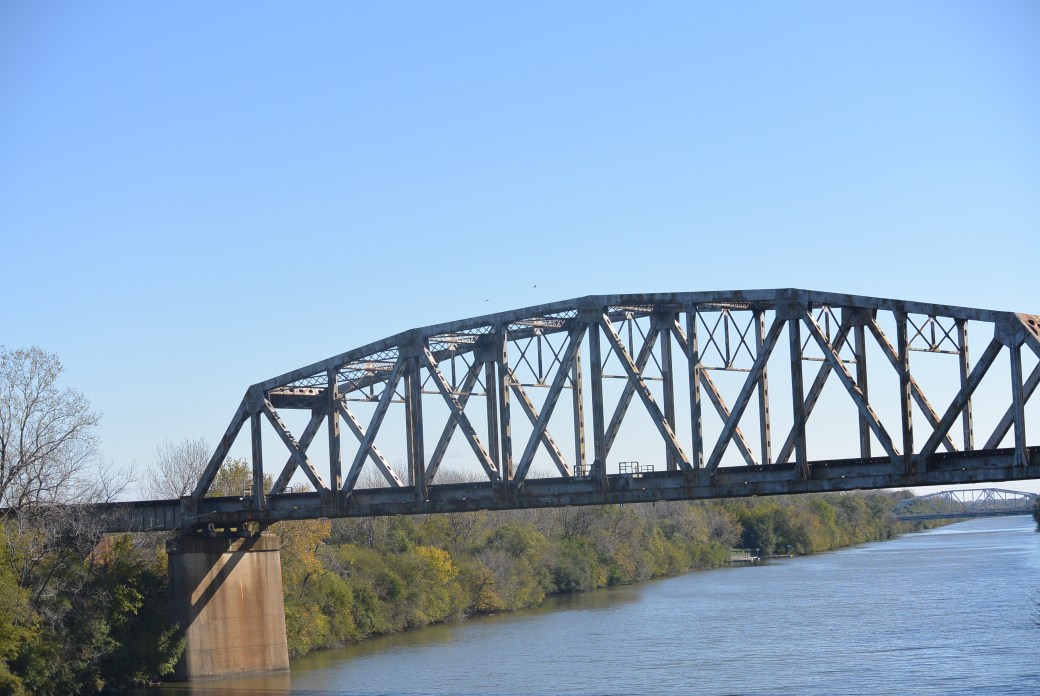

Same as above

DSC_2493

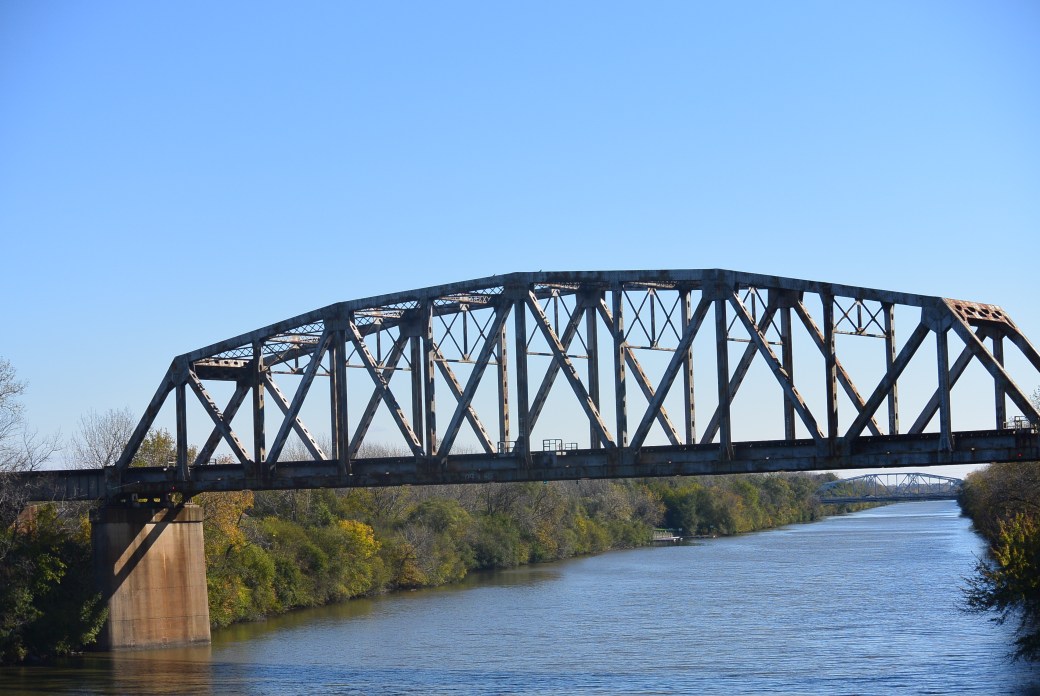

Same as above

DSC_2494

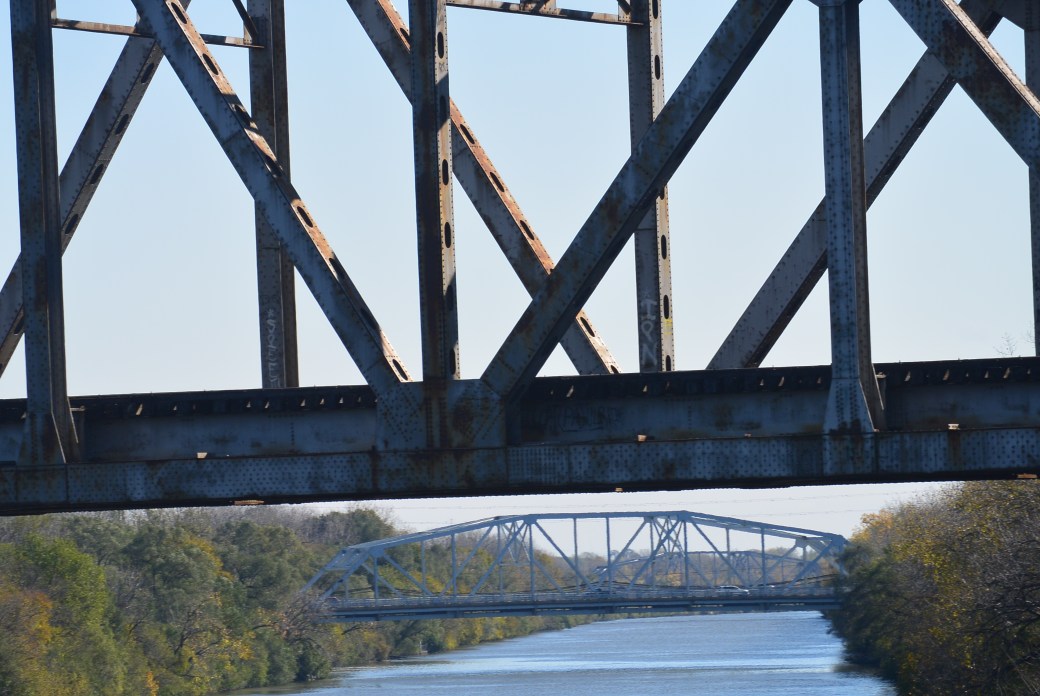

Two bridges seen from the Southwest Highway Bridge

DSC_2495

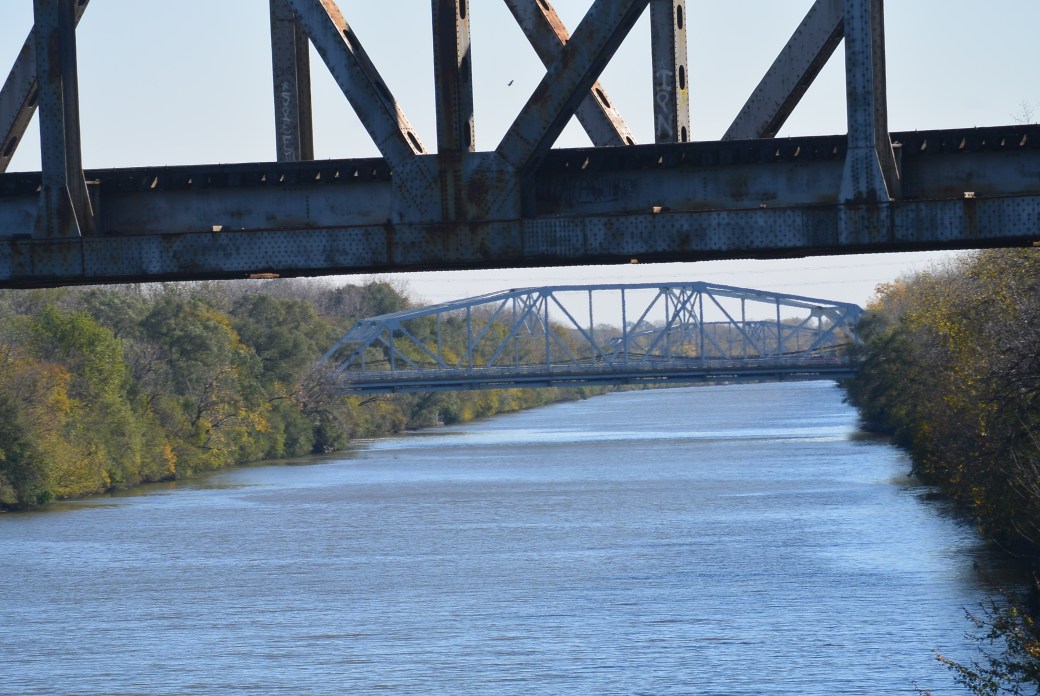

Harlem Avenue Bridge as seen from Southwest Highway.
