5 Mile Bridge I and M Canal

5 Mile Bridge I and M Canal

5 mile Bridge I and M Canal

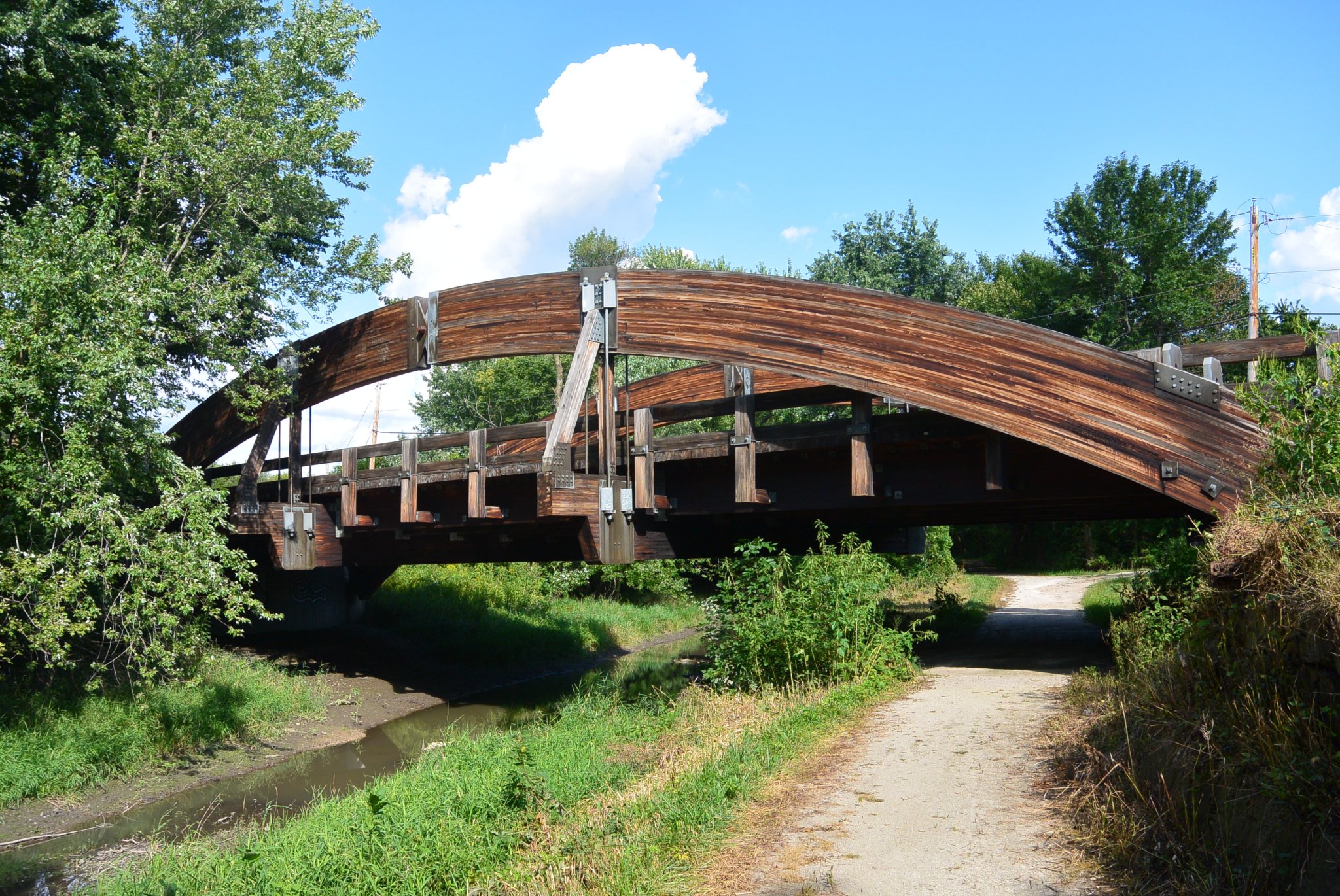

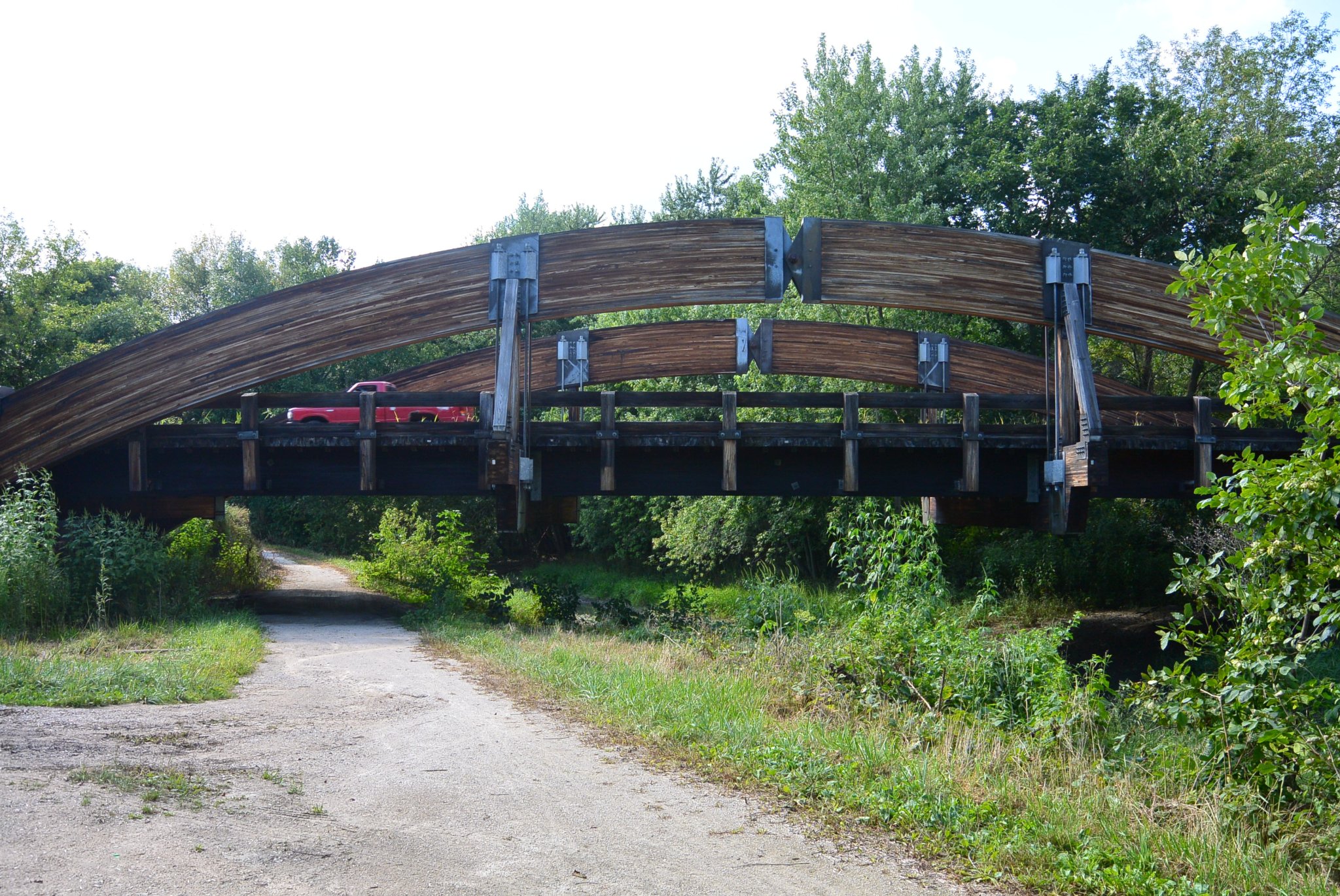

     This bridge crosses the I and M Canal 5 miles from the Morris City limits.   It is also called Old Stage Road Bridge.

    It was built in 1995.  It is an all wood closed spandel arch bridge.  It was built by Belvidere Construction of Belvidere, Il.  The designer was Graef, Anhalt, Schloemer and Associates of Chicago, Il.

    THe largest span is 126.6 feet.  Total length is 130.3 feet.  Structure width is 25.9 feet.

Bridge Inspection as of 9/2014

Deck Condition                            Rating.      Very good   8 out of 9

Superstructure.                            Rating.      Very good   8 out of 9

Substructure.                                Rating.       Very Good  8 out of 9
