CTA Purple Line North Shore Channel Bridge

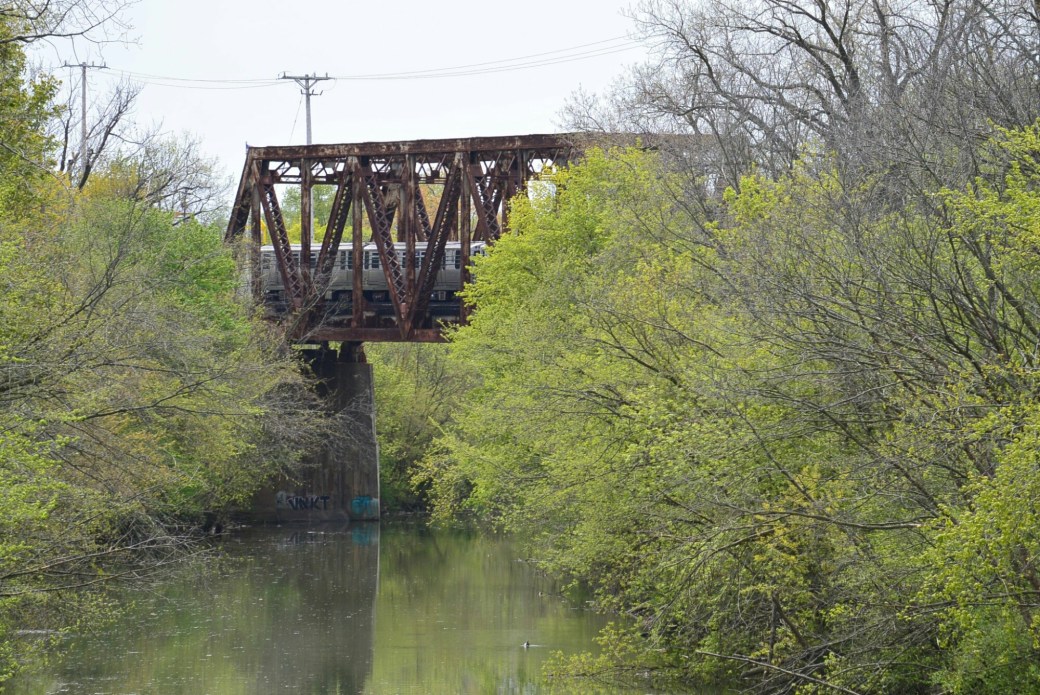

CTA Bridge over the North shore channel.  L train is seen on the bridge

Nestled in a wooded area of Evanston crossing the North Shore Channel is a historic railroad bridge.   At various times it was used by  the Chicago, Milwaukee, St. Paul and Pacific RR. and the Chicago , North Shore and Milwaukee interurban line.  Currently it is used by the CTA Purple line.

The bridge is a Warren through truss with all verticals.  Largest span measures 175 feet.  Total length is 425 feet.     It was built in 1909.  Bridge engineer was listed as Carlton R. Dart.

0802171321

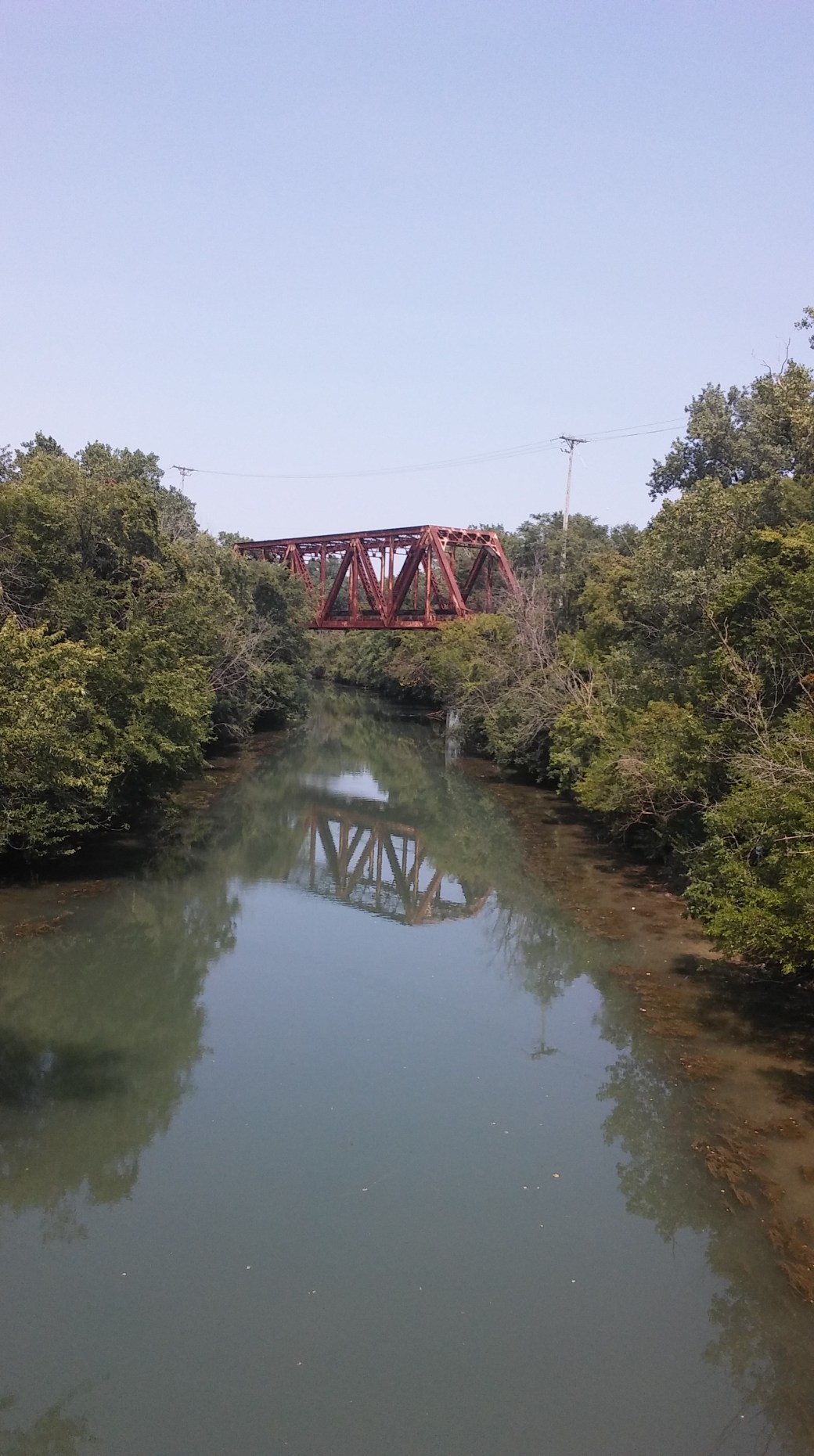

CTA Bridge over the North Shore Channel



0802171321d

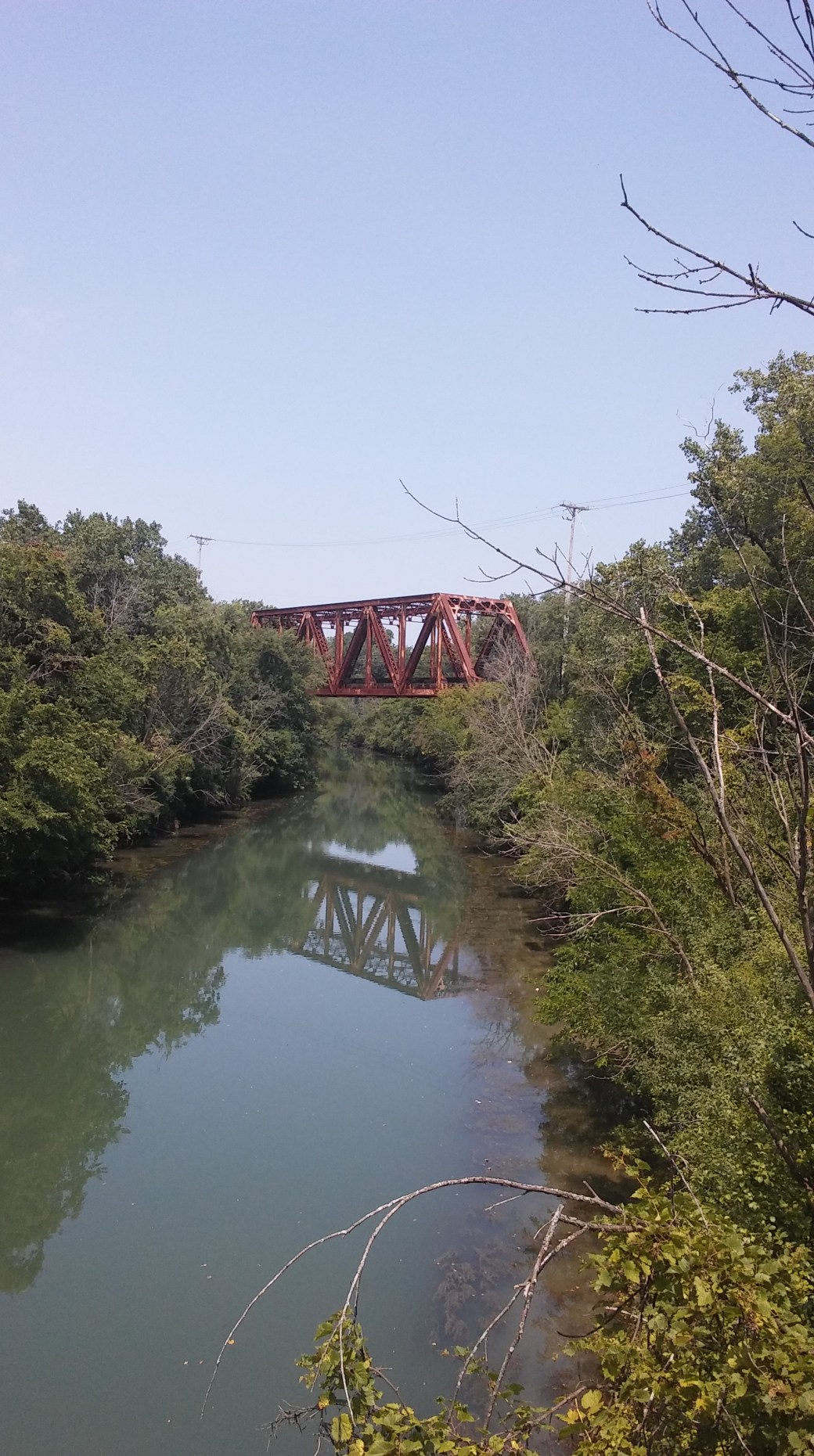

CTA Bridge over North Shore Channel  near Central Avenue

0802171321d

CTA Bridge over the North Shore Channel

Central Ave. Crossing North Shore Channel Opposite View
